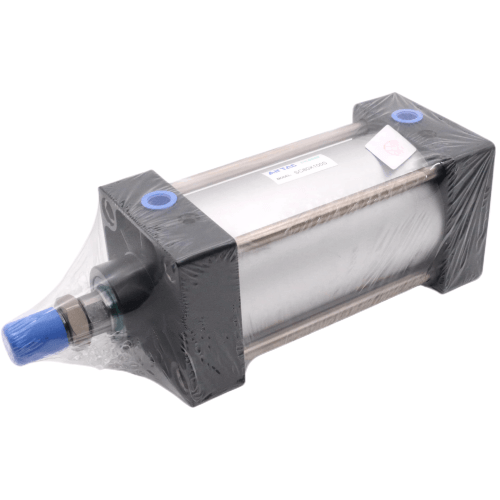

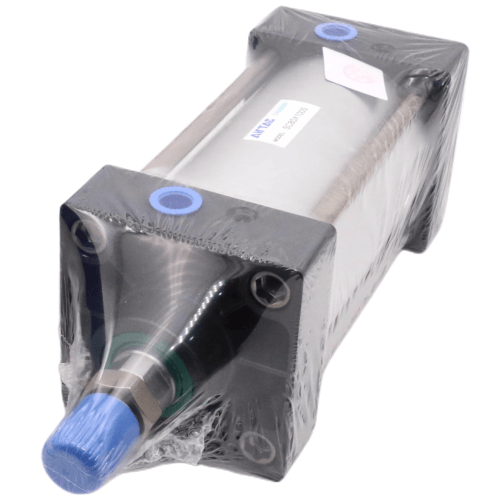

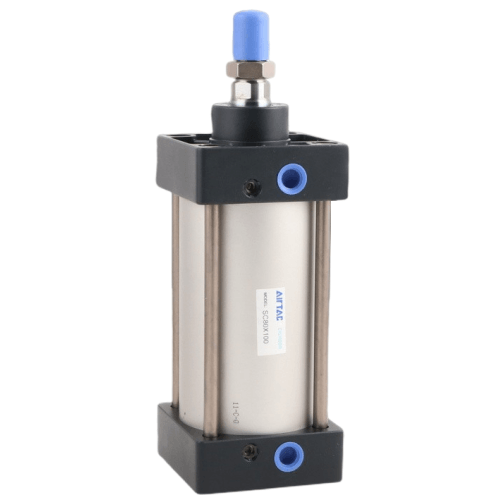

Airtac B06-SC Battery-Dedicated Standard Cylinder B06-SC50X450S
AirTAC B06-SC50X450S Battery-Powered Standard Cylinder Specifications
- Model: B06-SC50X450S
- Type: Single-acting spring return (battery-driven)
- Bore size: Ø50 mm
- Stroke: 450 mm
- Operation mode: Push/pull with integrated DC power pack
- Working pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 60℃
- Buffer type: Adjustable pneumatic cushion
- Mounting style: Basic fixed (ISO 15552 compatible)
- Port size: G3/8 (NPT1/4 optional)
- Cylinder material: Anodized aluminum alloy
- Seal material: NBR + polyurethane hybrid
- Rod material: Chrome-plated steel
- Weight: 5.8 kg (without battery)
- Dimensions: 630mm(L) × 78mm(W) × 78mm(H)
- Battery specs: 24V DC lithium pack (3hrs continuous use)
- IP rating: IP54 (splash/dust resistant)
Self-contained pneumatic actuator combining compressed air operation with battery power management. Features low-friction seals and dual pressure sensors for adaptive force control. The T-slot mounting surface allows 360° accessory attachment. Requires monthly lubrication of guide rods.
- Mobile material handling robots
- Emergency door release systems
- Solar-powered agricultural actuators
- Portable assembly station clamping
- Battery-operated conveyor diverters
Installation note:
Maintain 0.5-1mm clearance between rod end and load during alignment.
Charge battery for 2hrs before first use. Replace air filter cartridge every 500 cycles.
