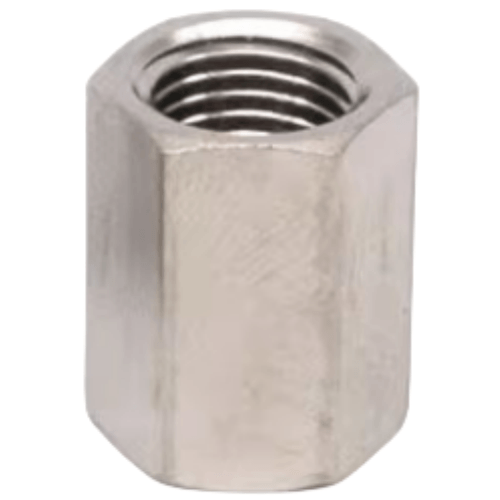

Airtac B52-BU Copper-Free Double Female Straight Union B52-BU0101
AirTAC B52-BU0101 Copper-Free Double Female Threaded Straight Fitting Specifications
- Model: B52-BU0101
- Type: Straight through connector with dual female threads (parallel)
- Material: SUS303 stainless steel (copper-free design)
- Thread specification: G1/8" (ISO228-1 compliant)
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 150℃
- Surface treatment: Natural anodized finish
- Seal compatibility: Compatible with NBR, FKM, and PTFE seals
- Weight: 12.5g ±0.3g
- Dimensions: 25mm(L) × 14mm(OD) × 14mm(ID)
- Thread engagement depth: 8mm per side
- Flow coefficient (Cv): 0.15
- Vibration resistance: ≤10Hz @ 1.5mm amplitude
- Certification: RoHS compliant
Precision-machined corrosion-resistant fitting featuring bi-directional flow capability and zero copper content, ideal for semiconductor manufacturing or medical gas systems requiring strict metal contamination control. The hexagonal center profile enables 360° tool access for installation in confined spaces.
- Ultra-clean compressed air lines in pharmaceutical production
- Corrosive gas handling in chemical analysis equipment
- High-purity vacuum system connections
- Liquid CO₂ distribution in food processing machinery
- Oxygen therapy device pneumatic circuits
Installation protocol:
Apply thread sealant (PTFE tape recommended) to outer 2 threads only to prevent
over-application. Torque to 12-15 N·m using opposing wrenches. Perform pressure
test at 1.25× operating pressure after 24hr curing period.
| Property | Property Value |
|---|---|
| sku | B52-BU0101 |
