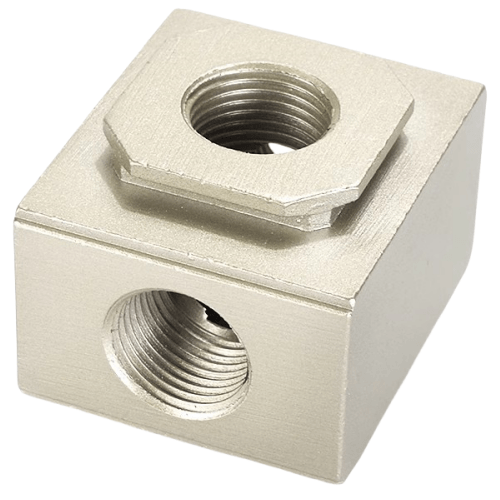

Airtac B52-GA Copper-Free Manifold Block B52-GA30010
$18.57
Regular price
$26.07
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B52-GA30010
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B52-GA Copper-Free Manifold B52-GA30010 Technical Specifications
- Model: B52-GA30010
- Type: Modular aluminum manifold (copper-free design)
- Material: 6063-T5 aluminum alloy (anodized surface)
- Port size: 1/4" NPT standard (G1/4 optional)
- Max operating pressure: 1.0 MPa
- Min operating pressure: 0.1 MPa
- Temperature range: -20℃ to 80℃
- Mounting pattern: ISO 15407-1 compliant
- Thread depth: 12mm (for valve mounting)
- Seal material: HNBR (Hydrogenated Nitrile) with copper-free compound
- Surface hardness: HV 400±20 (anodized layer)
- Weight: 530±10g
- Dimensions: 300mm(L) × 38mm(W) × 32mm(H)
- Port spacing: 20mm center-to-center
- Air passage: Ø4.0mm (individual channel)
- Flow rate: 750 NL/min (at 0.5MPa)
Multi-channel distribution block engineered for copper-sensitive environments, featuring non-ferrous construction and chemical-resistant sealing. The grooved base allows modular expansion up to 10 stations. Precision-machined internal galleries minimize pressure drop across ports.
Primary Applications:
- Semiconductor manufacturing equipment
- Copper-free pneumatic systems in food processing
- Pharmaceutical cleanroom automation
- High-purity gas distribution systems
- Laboratory analytical instrument plumbing
Installation protocol:
Use copper-free lubricants during assembly. Torque mounting screws to 1.2-1.5N·m in cross pattern.
Perform helium leak test at 0.8MPa for critical applications. Replace seals every 500,000 cycles.
| Property | Property Value |
|---|---|
| sku | B52-GA30010 |
