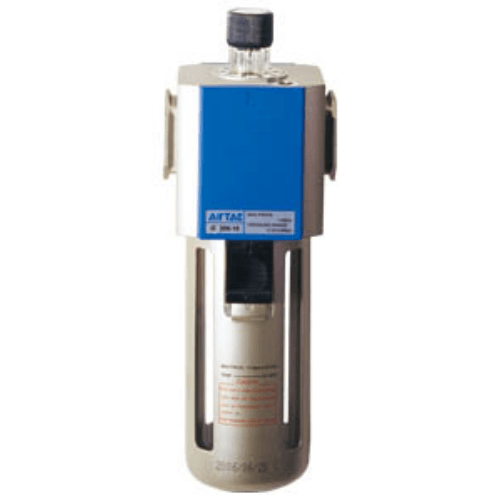

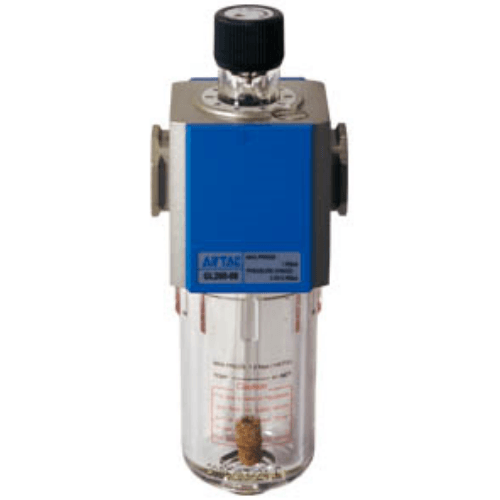

Airtac B52-GL Copper-Free Air Treatment Unit B52-GL30010
AirTAC B52-GL Copper-Free Air Treatment Unit B52-GL30010 Specifications
- Model: B52-GL30010 (Copper-Free Series)
- Type: 3-in-1 Combination Filter-Regulator-Lubricator
- Port size: G3/8 (BSPP Thread)
- Maximum Flow: 3000 L/min (ANR)
- Operating pressure: 0.05–1.0 MPa
- Filtration grade: 5 μm (with 100μm stainless steel pre-filter)
- Pressure gauge range: 0–1.6 MPa (integrated with regulator)
- Drain type: Manual drain with anti-splash shield
- Housing material: Aluminum alloy (anodized surface)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 580g ±2% (dry, without lubricant)
- Dimensions: 155mm(H) × 72mm(W) × 85mm(D)
- Pressure adjustment: Knob with lockable mechanism
- Bowl capacity: 120cc (transparent polycarbonate)
Copper-free FRL unit specifically engineered for applications requiring ISO 8573-1:2010 Class 4 air quality. Features dual-stage filtration with cyclone separator for moisture removal and corrosion-resistant construction. The pressure regulator includes a tamper-proof locking collar and precision diaphragm for stable output (±0.02 MPa deviation).
- Semiconductor manufacturing equipment
- Medical gas control systems
- Food-grade pneumatic packaging lines
- Marine environment machinery
- Copper-sensitive chemical processes
Installation protocol:
Mount vertically with airflow arrow alignment. Maintain 50mm clearance below bowl for drainage.
Pre-charge lubricator with ISO VG32 oil before operation. Replace filter element every 4,000 operating hours.
Compatibility note:
Not suitable for phosphate ester-based fluids or ethylene glycol mixtures.
Maximum oil feed rate: 5 drops/m³ (adjust via metering needle valve).
| Property | Property Value |
|---|---|
| sku | B52-GL30010 |
