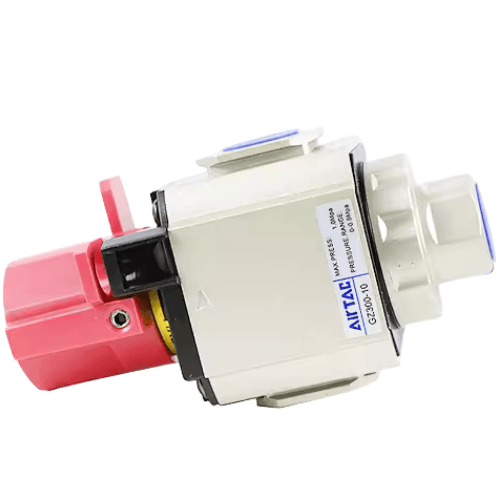

Airtac B52-GZ Non-Copper Shut-Off Valve B52-GZ30008J
AirTAC B52-GZ Copper-Free Shutoff Valve B52-GZ30008J Specifications
- Model: B52-GZ30008J
- Type: 3/2-way normally closed (direct-acting)
- Port size: G1/8 (ISO228 standard)
- Thread specification: Rc1/8 (PT1/8 compatible)
- Operating pressure: 0.05–1.0 MPa
- Maximum flow rate: 850 L/min (ANR)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Duty cycle: 100% ED (continuous operation capable)
- Response time: ≤15ms (at rated voltage)
- Seal material: Fluororubber (FKM) with copper-free construction
- Body material: Aluminum alloy ADC12 with nickel plating
- Temperature range: -10℃ to 80℃ (with FKM seals)
- Protection rating: IP67 (dustproof and waterproof)
- Weight: 0.82 kg ±5%
- Dimensions: 80mm(L) × 50mm(W) × 50mm(H) (excluding connectors)
- Port alignment: Horizontal/vertical multi-directional mounting
- Manual override: Built-in emergency operation button
Copper-free pneumatic shutoff valve specifically engineered for environments prohibiting copper contamination. Features rapid response electromagnetic actuation with double-sealed structure for zero leakage. The nickel-plated body resists corrosion in high-humidity conditions, while FKM seals maintain integrity in petroleum-based lubricant environments.
- Semiconductor manufacturing equipment
- Medical gas control systems
- Food-grade pneumatic circuits
- Marine hydraulic control units
- Battery production line automation
- Laboratory analytical instruments
Installation requirements:
Maintain minimum 1.5x port diameter straight piping upstream.
For vertical mounting, position coil assembly above valve body
to prevent particulate accumulation. Requires 5-15μm filtration.
Copper content:
Complies with RoHS Directive 2011/65/EU Article 4(1)
(copper alloy content <4% w/w in homogeneous material)
| Property | Property Value |
|---|---|
| sku | B52-GZ30008J |
