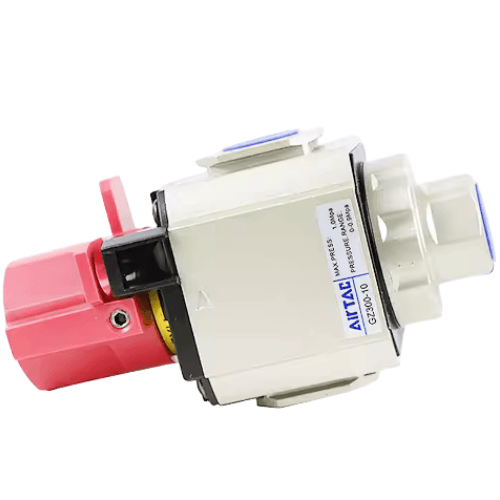

Airtac B52-GZ Non-Copper Shut-Off Valve B52-GZ30010JG
AirTAC B52-GZ30010JG Copper-Free Shutoff Valve Specifications
- Model: B52-GZ30010JG
- Type: 2-way normally open manual shutoff valve (copper-free design)
- Port size: G1/4 (ISO228-1 standard)
- Thread type: External thread (male)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Operating temperature: -5℃ to 80℃
- Flow coefficient (Cv): 1.2
- Seal material: Fluororubber (FKM)
- Body material: Anodized aluminum alloy (Cu <0.1%)
- Weight: 185g ±5g
- Dimensions: 68mm(L) × 34mm(W) × 42mm(H)
- Port orientation: Straight-through design
- Leakage rate: ≤3 bubbles/min (ISO Standard 5208)
Heavy-duty manual shutoff valve specifically engineered for copper-sensitive environments. Features zero copper content construction with corrosion-resistant anodized finish, making it ideal for semiconductor manufacturing and medical gas systems. The 45° rotary handle provides positive shutoff with tactile feedback, requiring 2.5N·m torque for full closure.
- Ultra-high purity gas delivery systems
- Oxygen therapy equipment in healthcare
- Chemical dosing systems with corrosive media
- Cleanroom pneumatic networks
- Laboratory analytical instrument gas control
Installation protocol:
Always install with flow direction arrow aligned. For gas applications,
perform helium leak test at 0.6MPa after installation. Lubricate stem
quarterly with PFPE-based grease in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | B52-GZ30010JG |
