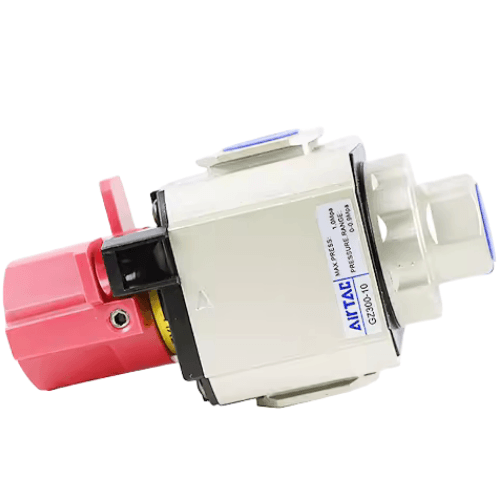

Airtac B52-GZ Non-Copper Shut-Off Valve B52-GZ30015J
AirTAC B52-GZ Copper-Free Shutoff Valve B52-GZ30015J Technical Details
- Full model designation: B52-GZ30015J
- Valve type: Manual reset type shutoff valve (copper-free design)
- Port configuration: G1/4 (BSPP female threads)
- Maximum working pressure: 1.0 MPa (145 psi)
- Pressure regulation range: 0.05-0.85 MPa
- Flow capacity: 350 NL/min (ANR)
- Temperature tolerance: -5℃ to 80℃ (with 0-80% RH)
- Body material: Aluminum alloy ADC12 with black anodization
- Seal components: HNBR rubber (hydrogenated nitrile)
- Weight: 580±10g (including packaging)
- Dimensions: 98mm(L) × 54mm(W) × 62mm(H) (excluding handle protrusion)
- Thread engagement depth: 12mm minimum
- Pressure gauge interface: R1/8 (optional)
- Leakage rate: ≤0.1 NL/min under max pressure
Heavy-duty safety shutoff valve featuring copper-free fluid path construction for oxygen and chemical compatibility. The B52-GZ series incorporates a positive-lock manual override with tamper-resistant design, requiring 3 full rotations for full closure. The integrated pressure relief groove prevents seat damage during rapid depressurization.
- Medical oxygen supply line safety cutoff
- Semiconductor gas distribution systems
- Brewery CO₂ management systems
- Laboratory corrosive gas handling
- Hydraulic system emergency dump circuits
Installation protocol:
Apply 28-32 N·m torque during port installation using anti-seize compound.
Valve must be mounted horizontally with arrow aligned to flow direction.
Perform monthly manual cycling to prevent seat adhesion.
| Property | Property Value |
|---|---|
| sku | B52-GZ30015J |
