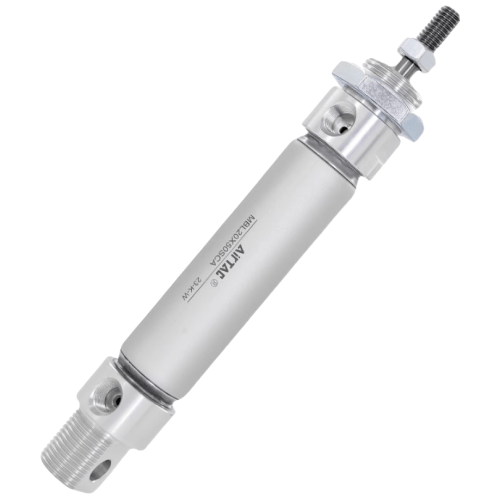

Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA
The AirTAC Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA is a genuine double-acting aluminum-barrel mini round cylinder with a Ø40mm bore and 150mm stroke, G1/4 air ports and a fixed rubber bumper. Its compact riveted body suits push, hold and clamp motion in tight machine spaces.
- BoreØ40 mm
- Stroke150 mm
- Port sizeG1/4
- Acting typeDouble acting
- Rod threadM12×1.25
- CushionRubber bumper (MBLC variant: adjustable air cushion)
About the Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA
The B52-MBL40X150SCA is AirTAC's copper-free (copper-prohibited) version of the MBL40X150SCA, a compact double-acting aluminum mini round cylinder. With a 40mm bore, it delivers 628 N push and 528 N pull at 0.5 MPa, and 880 N push at 0.7 MPa. The 150mm stroke suits short-travel positioning tasks in machines where copper alloys are banned, such as ammonia lines or certain battery and electronics plants.
The B52- prefix marks a build where copper and copper alloys are not permitted; the exact material substitutions should be confirmed with us. This model includes a CA pivot back cover that swings on a pin for arcing loads, and an -S magnet for use with CMSG (reed) or DMSG/EMSG (electronic) sensor switches. The riveted rolling-packed barrel keeps it light, but it is not designed for disassembly like a tie-rod cylinder.
Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA Technical Specifications
| Model | Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA |
|---|---|
| Series | MBL aluminum-barrel mini round cylinder |
| Bore size | Ø40 mm |
| Stroke | 150 mm |
| Acting type | Double acting |
| Port size | G1/4 |
| Rod thread | M12×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Rubber bumper (MBLC variant: adjustable air cushion) |
| Max stroke | Up to 500 mm |
Specifications follow the official AirTAC MBL series datasheet. Confirm against the product label before installation. Standard stroke to 500 mm (special order to 800 mm). Thread options: PT / G / NPT.
Theoretical Output Force (Ø40mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 628 N | 528 N |
| 0.7 MPa | 880 N | — |
| Max (@1.0 MPa) | 128 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA
| MBL | Aluminum-barrel mini round cylinder, double acting. |
|---|---|
| 40 | Bore size in mm. |
| ×150 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: MBLC (adjustable cushion), MBLD (double rod), MBLJ (adjustable stroke), MSBL/MTBL (single acting).
Where the Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA Is Used
Ammonia Refrigeration Valve Actuation
In ammonia-based cooling skids, this copper-free cylinder actuates a 2-way valve stem with 628 N push at 0.5 MPa, where copper alloys would corrode. The 150mm stroke matches the valve travel, and the CA pivot absorbs minor misalignment.
Battery Tab Forming Press
For a lithium-ion tab bending station, this cylinder delivers 880 N push at 0.7 MPa to form a 0.2mm nickel tab. The compact riveted body fits between guide rails, and the -S magnet signals the press controller via a CMSG reed switch.
Electronics Cabinet Door Latch
In a clean-room electronics cabinet, this unit retracts a spring-loaded latch with 528 N pull at 0.5 MPa. The copper-free build prevents ionic contamination, while the CA pivot allows the rod to align with the latch hook without binding.
Is the Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA the Right Cylinder?
For a lighter duty, step down to the MBL32X150 with 402 N push at 0.5 MPa; for more force, the MBL50X150 offers 981 N push at 0.5 MPa. This B52- version is for copper-free environments-confirm the substituted materials with us before ordering. The fixed rubber bumper softens end-of-stroke impact, but it is not a lock; if the load must be held without air pressure, add an external rod lock or pilot-operated check valve.
This SKU has a G1/4 port, 16mm rod with M12x1.25 thread, CA pivot back cover, and PT port thread. The magnet (-S) enables position sensing with CMSG/DMSG/EMSG switches. For side-load resistance at this 150mm stroke, consider an external guide or the MBLD double-rod type.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (LB / FA / SDB) and back cover (CA pivot / U flat-end).
- check Installation by qualified personnel per AirTAC docs.
Airtac B52-MBL Copper-Free Aluminum Alloy Mini Cylinder B52-MBL40X150SCA FAQ
At 0.5 MPa, push is 628 N and pull is 528 N. At 0.7 MPa, push rises to 880 N. The theoretical maximum is 128 kgf at 1.0 MPa. Operating pressure range is 0.15-1.0 MPa.
B52- marks AirTAC's copper-free (copper-prohibited) build for lines where copper alloys are banned, such as ammonia systems. The exact material substitutions must be confirmed with us. The base MBL has a fixed rubber bumper that softens end-of-stroke impact-it is not an adjustable air cushion (that is the MBLC variant) and not a lock.
