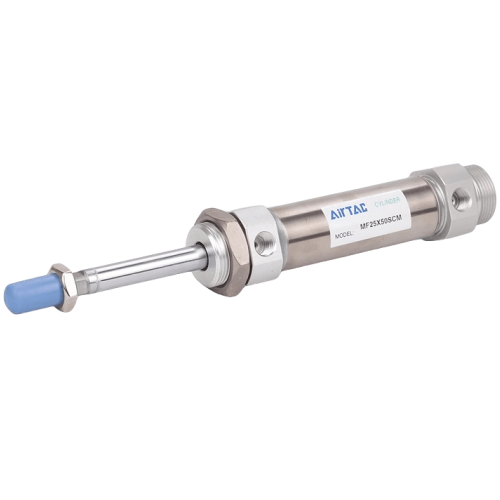

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF20X50SCMLB
AirTAC B52-MF20X50SCMLB Non-Copper Stainless Steel Mini Cylinder Specifications
- Series: B52-MF (Compact ISO Cylinder)
- Full model code: B52-MF20X50SCMLB
- Bore size: 20mm
- Stroke: 50mm
- Material: SUS304 stainless steel (copper-free)
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -20℃ to 150℃
- Cushion type: Adjustable rubber bumper (both ends)
- Port size: M5×0.8 (standard)
- Rod end: Female thread M6×1.0
- Mounting type: Foot-mounted (MF series)
- Seal material: Fluororubber (FKM)
- Weight: 480g ±5%
- Dimensions (L×W×H):
- Total length: 105mm (retracted)
- Body width: 32mm
- Mounting foot height: 10mm
- Rod diameter: 8mm
- ISO standard: 6432
- Protection class: IP67
Ultra-compact stainless steel cylinder engineered for corrosive environments requiring copper-free construction. Features precision-ground rod and dual cushioning with ±5° auto-alignment capability. The electropolished surface finish (Ra≤0.8μm) prevents particle shedding in cleanroom applications.
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- Marine equipment actuators
- Food-grade pneumatic systems
- High-cycle automation (up to 1,200 cph)
Installation protocol:
Use M4×12 stainless steel screws (2.5N·m torque max) for mounting.
Lubricate with ISO VG32 turbine oil before initial use. Requires 5μm air filtration.
| Property | Property Value |
|---|---|
| sku | B52-MF20X50SCMLB |
