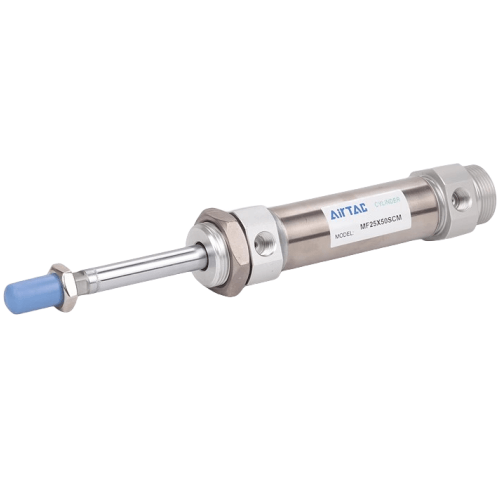

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF20X75SCA
AirTAC B52-MF20X75SCA Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF20X75SCA
- Type: Single-acting spring return (push type)
- Bore size: 20mm
- Stroke: 75mm
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 150℃
- Port size: M5x0.8 (standard)
- Material: SUS304 stainless steel (body/piston rod)
- Seal material: Fluororubber (FKM)
- Mounting type: Basic front flange
- Cushioning: Adjustable rubber bumper
- Anti-rotation: Built-in guide mechanism
- Corrosion resistance: Passes 96hr salt spray test
- Weight: 0.68kg ±3%
- Dimensions: 140mm(L) × 20mm(W) × 20mm(H)
- ISO standard: 6432 compliant (compact series)
- Protection rating: IP67 (dust/water resistant)
Ultra-compact copper-free cylinder engineered for corrosive environments requiring strict metal contamination control. Features laser-etched stroke markings and self-lubricating bushings. The through-rod design allows for optional magnetic sensing. Special chromium-plated piston rod enhances wear resistance.
- Semiconductor wafer handling systems
- Chemical dosing equipment
- High-purity water treatment plants
- Medical sterilization devices
- Food-grade packaging machinery
- Cleanroom automation (Class 1000 or better)
Installation note:
Use only compatible copper-free air lines (PUR/Nylon recommended).
Lubricate with ISO VG32 grade oil if operating below -10℃.
Maximum side load: 3N at full extension.
| Property | Property Value |
|---|---|
| sku | B52-MF20X75SCA |
