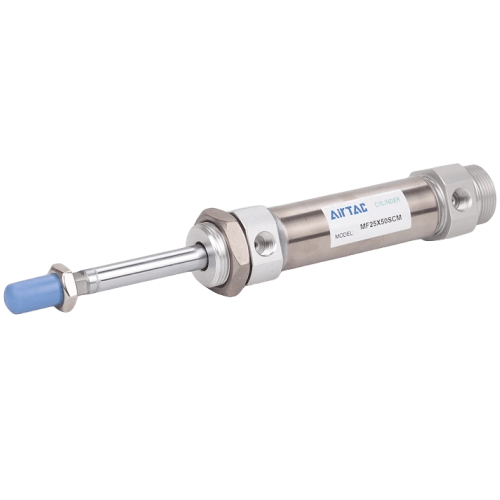

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF25X100SUTC
AirTAC B52-MF25X100SUTC Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF25X100SUTC
- Series: B52-MF (Copper-free stainless steel series)
- Bore size: 25mm
- Stroke: 100mm
- Material: SUS304 stainless steel (body/piston rod)
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 150℃
- Cushion type: Adjustable rubber buffer
- Mounting type: Threaded (M5x0.8 mounting holes)
- Rod end: Female thread M5x0.8
- Piston speed: 50–800 mm/s
- Position detection: Built-in magnet for sensor mounting
- Weight: 0.45kg
- Dimensions: 130mm(L) × 25mm(W) × 25mm(H) (fully retracted)
- Extended length: 230mm (stroke + body length)
- Protection rating: IP67
- Seal material: Fluororubber (FKM)
Ultra-compact stainless steel cylinder engineered for corrosive environments requiring copper-free components. Features precision-ground rod and double-sealed construction for leak prevention. Ideal for applications demanding chemical resistance and minimal particle generation, with optional auto-switch compatibility through embedded magnet design.
- Pharmaceutical cleanroom automation
- Food processing equipment actuators
- Semiconductor wafer handling systems
- Marine environment control mechanisms
- Chemical dosing valve operations
- Medical sterilization device positioning
Installation guidelines:
Use stainless steel-compatible lubricant (ISO VG32 or equivalent).
Maintain 0.5mm minimum clearance around rod during alignment.
For vertical mounting, install with rod facing downward to prevent condensate accumulation.
| Property | Property Value |
|---|---|
| sku | B52-MF25X100SUTC |
