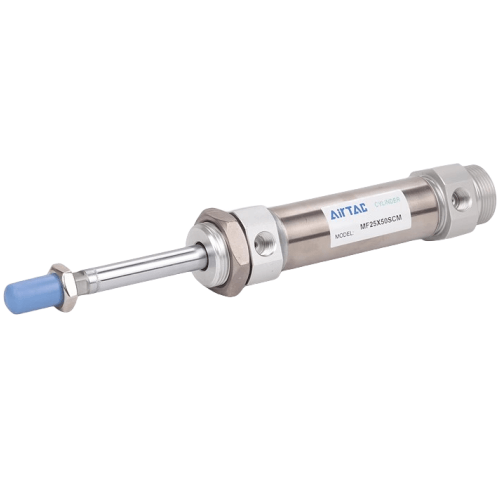

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF25X150SCMLB
AirTAC B52-MF25X150SCMLB Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF25X150SCMLB
- Series: B52-MF (Copper-free stainless steel series)
- Bore size: 25 mm
- Stroke: 150 mm
- Operating pressure: 0.05–1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable elastic cushion (both ends)
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Piston material: Stainless steel (SUS304)
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (nitrile rubber)
- Weight: 0.65 kg
- Dimensions: 196mm(L) × 32mm(W) × 32mm(H)
- Mounting type: Standard LB series (front flange with axial mounting holes)
- Corrosion resistance: IP67 (dust/water resistant)
Ultra-compact stainless steel cylinder specifically engineered for copper-restricted environments. Features double-acting operation with precision-machined components for smooth linear motion. The copper-free construction prevents contamination in sensitive applications while maintaining chemical resistance. Includes magnetic piston for position sensing compatibility.
- Semiconductor manufacturing equipment
- Medical sterilization device actuators
- Food processing machinery (FDA-compliant areas)
- Cleanroom automation systems
- Laboratory analytical instruments
- Marine environment controls
Installation note:
Lubricate with non-copper-based grease (ISO VG32 recommended).
Maintain minimum 0.3mm clearance around rod for thermal expansion.
Avoid side loads exceeding 2N·m. For vertical mounting, use guide mechanisms.
| Property | Property Value |
|---|---|
| sku | B52-MF25X150SCMLB |
