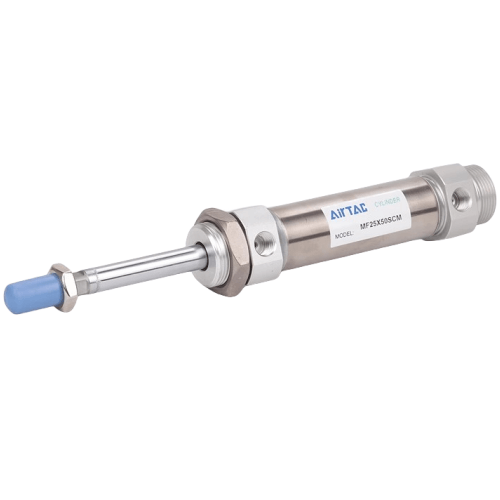

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF25X50SCA
AirTAC B52-MF25X50SCA Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF25X50SCA
- Bore size: 25mm
- Stroke: 50mm
- Operation type: Single-acting (spring return)
- Material: SUS304 stainless steel (cylinder body), CRCA (end cover)
- Seal material: Fluororubber (FKM)
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 150℃
- Port size: M5x0.8 (standard) with NBR cushion seal
- Piston rod thread: M6x1.0
- Protection rating: IP67
- Weight: 340g ±5g
- Dimensions:
- Total length (extended): 125mm
- Body diameter: Φ32mm
- Mounting base: 38mm x 19mm
Copper-free construction prevents contamination in sensitive environments, featuring corrosion-resistant stainless steel body with fluorine rubber seals for high-temperature resistance. The compact design integrates a built-in auto-adjust cushioning system (Patent No. ZL201510099519.X) that reduces impact noise by 15dB compared to standard models.
- Semiconductor manufacturing equipment
- Pharmaceutical production lines
- Food processing machinery (NSF compliant)
- High-purity chemical handling systems
- Cleanroom automation (ISO Class 5+ environments)
Installation guidelines:
Lubricate with ISO VG32 turbine oil before initial use.
For vertical mounting, ensure spring chamber faces downward to prevent
moisture accumulation. Max side load: 15N at full extension.
