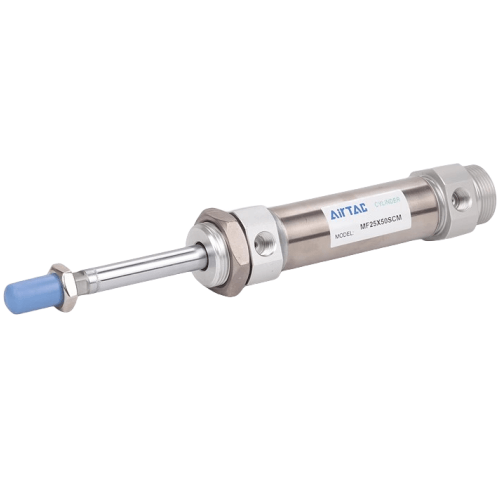

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF25X75SCA
AirTAC B52-MF25X75SCA Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF25X75SCA
- Type: Single-acting spring return (miniature series)
- Bore size: 25mm
- Stroke: 75mm
- Material: Stainless steel 304 body with chrome-plated piston rod
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Port size: M5x0.8 (dual pneumatic ports)
- Seal material: Fluorine rubber (FKM) for chemical resistance
- Protection rating: IP67 (standard), IP68 optional
- Weight: 420g ±5% (excluding accessories)
- Dimensions:
- Extended length: 141mm
- Retracted length: 66mm
- Body diameter: 32mm
- Mounting base: 50mm x 20mm
Ultra-compact corrosion-resistant cylinder engineered for environments requiring strict copper-free compliance. Features precision-ground rod guides and anti-rotation mechanism for stable linear motion. The electropolished surface finish minimizes particle generation, making it ideal for cleanroom applications. Requires lubrication-free operation with filtered air (5-40μm).
- Semiconductor wafer handling robots
- Pharmaceutical liquid dispensing systems
- Laboratory analytical instrument actuators
- Food-grade packaging machinery
- Marine equipment controls (saltwater environments)
Installation note:
Use only stainless steel fasteners to prevent galvanic corrosion.
Maximum side load 15N. For vertical mounting, specify spring-extend
configuration (SCA suffix) to prevent unintended movement during
power loss.
| Property | Property Value |
|---|---|
| sku | B52-MF25X75SCA |
