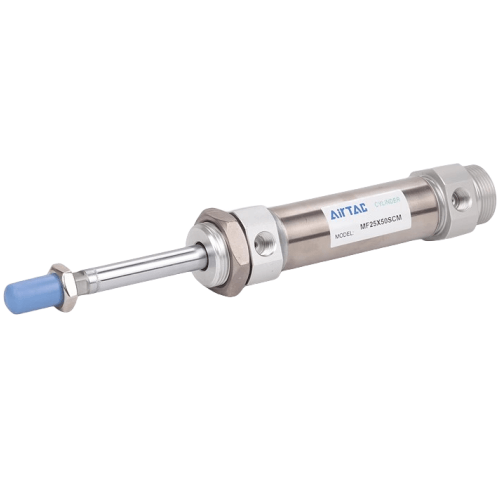

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF32X50SCA
AirTAC B52-MF32X50SCA Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF32X50SCA
- Series: B52-MF (Copper-free anti-corrosion design)
- Bore Size: 32mm
- Stroke: 50mm
- Operation: Double-acting
- Material: Stainless Steel (SUS304 barrel & rod)
- Seal Material: Fluororubber (FKM) + Special Copper-Free Compound
- Operating Pressure: 0.05–0.8 MPa
- Port Size: M5x0.8 (Dual ports)
- Cushioning: Adjustable buffer + Rubber pad
- Temperature Range: -20℃ to 80℃
- Protection Rating: IP67 (Enhanced sealing)
- Mounting Type: Square body with 4xM5 threaded holes
- Sensor Compatibility: Built-in magnet for SCA-series magnetic switches
- Weight: 1.2kg (with accessories)
- Dimensions: 120mm(L) × 32mm(W) × 32mm(H) (Full extension length)
Ultra-compact stainless steel cylinder engineered for corrosive/copper-sensitive environments. Features copper-free construction compliant with FDA and EU food machinery directives. The double-acting design enables precise bidirectional control with 0.15mm/piston-squeeze precision. Enhanced rod seal structure reduces leakage risk under 0.3MPa vacuum conditions.
- Food processing equipment (meat/poultry conveyors)
- Pharmaceutical cleanroom automation
- Semiconductor wafer handling robots
- Marine equipment actuators
- Medical sterilization device mechanisms
Installation Protocol:
Use only stainless steel fasteners (No copper alloys). Lubricate with ISO VG32-grade
food-grade oil before initial operation. Magnetic switch installation requires
0.5-1.0mm gap adjustment using alignment jig (Tool PN: SCA-AG5).
| Property | Property Value |
|---|---|
| sku | B52-MF32X50SCA |
