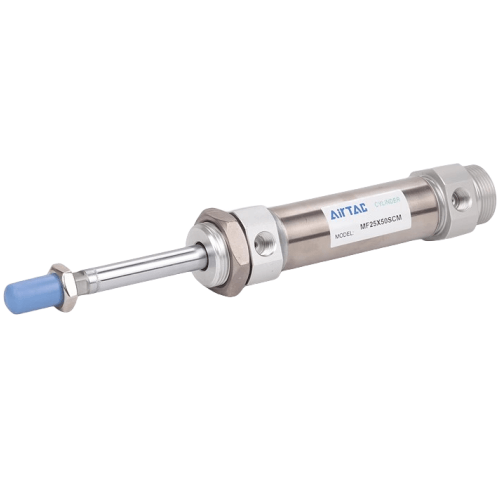

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF32X80SU
AirTAC B52-MF32X80SU Copper-Free Stainless Steel Mini Cylinder Specifications
- Model: B52-MF32X80SU
- Type: Double-acting, non-rotating rod design
- Bore diameter: 32mm
- Stroke: 80mm (±0.5mm tolerance)
- Material: SUS304 stainless steel (barrel/piston rod)
- Copper-free construction: Ideal for food/pharma applications
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 150℃
- Port size: M5x0.8 (standard) with NPT1/8 adapter optional
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting type: SU series front flange (ISO 15552 compatible)
- Weight: 1.25kg (without accessories)
- Dimensions: 140mm(L) × 42mm(W) × 42mm(H) (at mid-stroke)
- Rod thread: M10×1.25 (female)
- Max speed: 500mm/s (with cushioning)
- Seal material: Fluororubber (FKM) for chemical resistance
- Protection rating: IP67 (standard wiper included)
Ultra-compact corrosion-resistant cylinder engineered for harsh environments requiring copper-restricted or washdown conditions. Features precision-ground rod with chromium plating (3μm thickness) for smooth operation. Integrated magnetic piston (D-M9B sensor compatible) enables position feedback. Includes anti-vibration pads on mounting surface.
- Cleanroom automation in semiconductor manufacturing
- Sterile packaging machines in pharmaceutical lines
- Marine equipment actuators (saltwater resistant)
- Chemical dosing valve operators
- High-temperature oven door mechanisms
Maintenance note:
Lubricate with ISO VG32 turbine oil (non-detergent) every 500km of stroke travel.
Avoid side loads exceeding 15N. For vertical mounting, use rod-down orientation.
| Property | Property Value |
|---|---|
| sku | B52-MF32X80SU |
