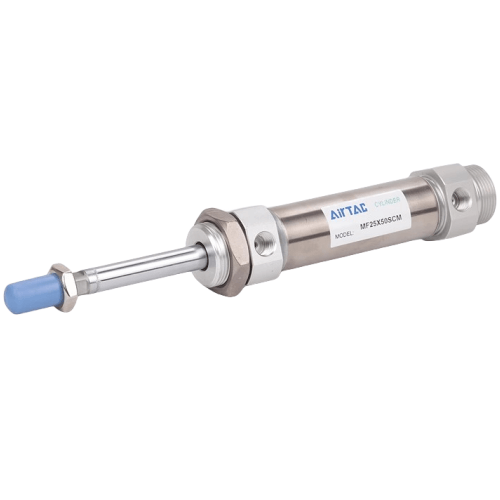

Airtac B52-MF Copper-Free Stainless Steel Mini Cylinder B52-MF40X100SCMTC
AirTAC B52-MF40X100SCMTC Non-Copper Stainless Steel Mini Cylinder Specifications
- Model: B52-MF40X100SCMTC
- Series: B52-MF (Copper-Free Stainless Steel Series)
- Bore size: 40mm
- Stroke: 100mm
- Operating pressure: 0.05–0.8 MPa
- Temperature range: -20℃ to 150℃
- Cushioning: Adjustable rubber buffer + shock absorber
- Material: SUS304 stainless steel (body), CRCA (mounting bracket)
- Seal material: FKM fluorocarbon rubber
- Port size: M5x0.8 (standard), optional NPT1/8
- Weight: 2.3kg (with bracket)
- Dimensions: 220mm(L) × 80mm(W) × 80mm(H) (max extended length)
- Rod thread: M10x1.25
- Mounting type: Basic fixed (MF1), optional foot-mounted (MF3)
- Accessories: Optional magnetic switch (D-M9NW)
- Protection rating: IP65 (standard), IP67 available on request
High-corrosion resistance mini cylinder engineered for harsh environments requiring copper-free components. Features non-sparking stainless construction ideal for explosive atmospheres or applications with strict metal contamination controls. The compact design achieves 30% space reduction compared to standard cylinders while maintaining 1.5x higher lateral load capacity.
- Clean room automation in semiconductor manufacturing
- Chemical processing equipment actuators
- Marine environment machinery
- Food-grade pneumatic systems (FDA-compliant lubrication)
- Pharmaceutical production lines with frequent sterilization
Installation note:
Use only stainless steel fasteners to prevent galvanic corrosion.
Lubricate with ISO VG32 turbine oil or equivalent before initial operation.
Avoid axial side loads exceeding 15N·m during mounting.
- Copper-free design meets ISO 13458-1 cleanliness standards
- Integrated wear-resistant guide bush for precise linear motion
- Double-acting operation with 5μm filtered air requirement
- Corrosion resistance: Passes 96hr salt spray test (ASTM B117)
| Property | Property Value |
|---|---|
| sku | B52-MF40X100SCMTC |
