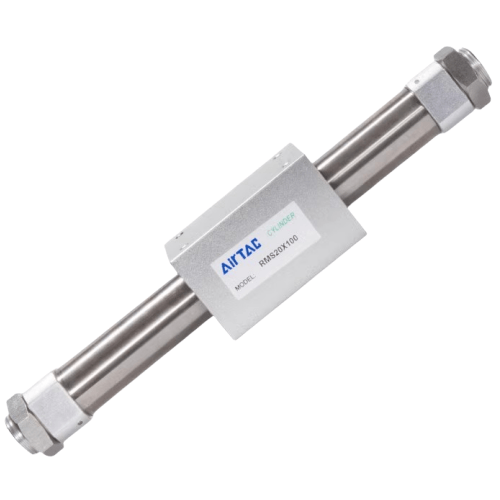

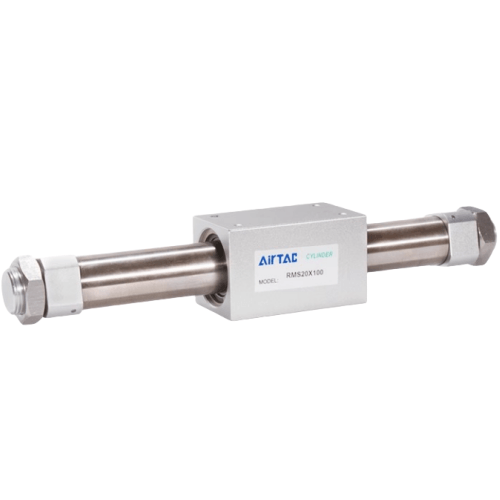

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS16X250
AirTAC B52-RMS16X250 Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS16X250
- Type: Non-rotating magnetic rodless cylinder (copper-free design)
- Bore size: 16mm
- Stroke: 250mm
- Operating pressure: 0.1–0.8 MPa
- Maximum speed: 500-1500mm/s (with cushioning)
- Temperature range: -20℃ to 80℃
- Mounting style: Horizontal or vertical
- Material: Aluminum alloy body, NBR seals
- Repeat accuracy: ±0.2mm
- Magnetic coupling force: 45N (max)
- Weight: 1.8kg (including rail)
- Dimensions: 300mm(L) × 34mm(W) × 45mm(H)
- ISO standard: 15552 compliant
- Air connection: M5x0.8 ports (dual ports)
Copper-free magnetic rodless cylinder with zero leakage design, featuring a unique non-contact magnetic coupling system that eliminates mechanical wear. The aluminum body with hard anodized surface treatment ensures corrosion resistance in harsh environments. Integrated T-slot rail allows direct load mounting and supports multi-axis configurations.
- Cleanroom automation (semiconductor/FPD manufacturing)
- Food processing machinery (copper-free compliance)
- Precision material handling systems
- Lithium battery production lines
- Pharmaceutical packaging equipment
- High-speed sorting conveyors
Installation guidelines:
Maintain 0.5mm minimum clearance between slider and rail during alignment.
Use only non-magnetic mounting hardware within 50mm range. Lubricate with ISO VG32
turbine oil for initial operation. Requires 5μm filtered dry air supply.
- No external sliding seals - eliminates lubricant contamination
- Integrated shock absorbers for high-speed operation
- Double-sided magnetic field design for stable coupling
- IP67 protection rating (optional IP69K available)
| Property | Property Value |
|---|---|
| sku | B52-RMS16X250 |
