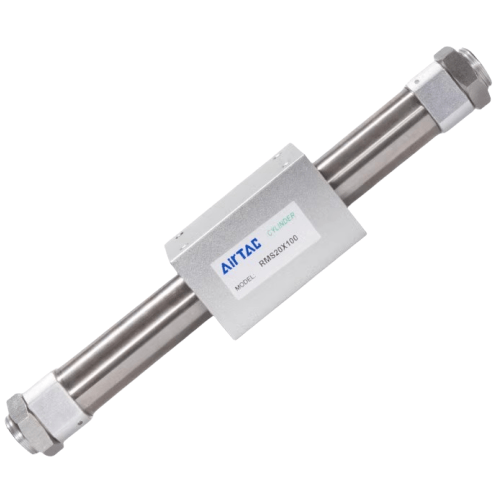

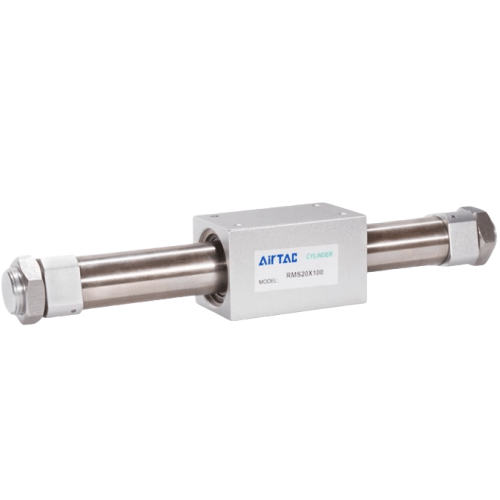

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS20X170LB
AirTAC B52-RMS20X170LB Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS20X170LB
- Type: Non-copper magnetic coupling rodless cylinder
- Bore size: 20mm
- Stroke: 170mm (±5mm adjustable)
- Operating pressure: 0.05-0.9 MPa
- Max thrust: 61N (at 0.5MPa)
- Piston speed: 50-700mm/s
- Temperature range: -10℃ to 80℃
- Mounting type: Linear guide rail integrated
- Seal material: NBR with wear-resistant ring
- Port size: M5x0.8 (dual ports)
- Repeat positioning accuracy: ±0.2mm
- Magnetic field strength: ≥60mT
- Weight: 1.85kg (without fittings)
- Dimensions: 220mm(L) × 82mm(W) × 38mm(H)
- Protection rating: IP54 (dust/water resistant)
Copper-free construction prevents metallic contamination in sensitive environments, featuring dual-channel magnetic sensors for precise position feedback. The T-slot guide rail design enables direct load mounting with 0.05mm/m alignment accuracy. Includes built-in shock absorbers and grease-free operation.
- Cleanroom automation in semiconductor manufacturing
- Precision glass panel handling systems
- Food packaging lines with washdown requirements
- Pharmaceutical tablet counting machines
- Lithium battery production conveyors
Installation note:
Maintain ≤0.2mm/m parallelism between cylinder and guide rail. Use only non-magnetic mounting hardware within 50mm range. Lubricate guide rail with ISO VG32 hydraulic oil every 500km travel distance.
| Property | Property Value |
|---|---|
| sku | B52-RMS20X170LB |
