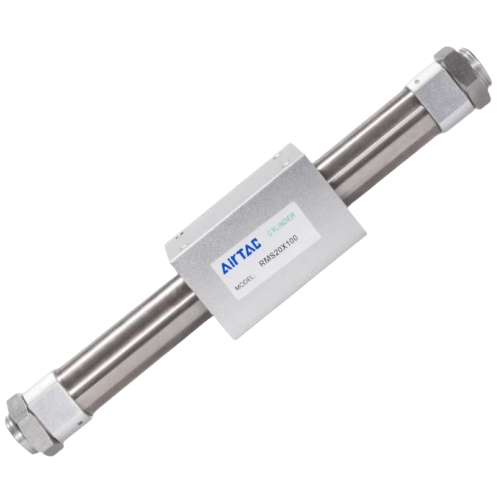

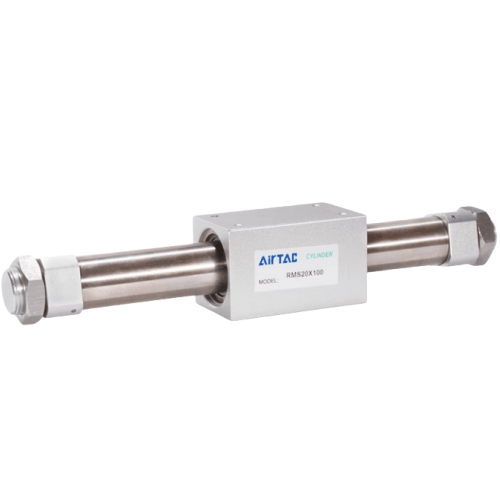

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS20X200LB
AirTAC B52-RMS20X200LB Copper-Free Magnetic Coupling Rodless Cylinder
- Model: B52-RMS20X200LB
- Type: Double-acting magnetic coupling rodless cylinder (copper-free construction)
- Bore size: Ø20mm
- Stroke: 200mm ±1mm
- Structure type: Dual-piston magnetic transmission
- Operating pressure: 0.1-0.8 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffers (both ends)
- Material: Aluminum alloy barrel, stainless steel piston rods
- Seal material: NBR (nitrile rubber) with anti-wear additives
- Mounting style: LB series - lateral mounting bracket with T-slot
- Position detection: Optional magnetic sensor grooves (2 per cylinder)
- Weight: 1.25kg ±5% (excluding accessories)
- Dimensions: 308mm(L) × 34mm(W) × 34mm(H) (at full extension)
- Minimum lateral clearance: 3mm per side required
- Repeat positioning accuracy: ±0.2mm
- Maximum speed: 500-800mm/s (pressure-dependent)
Copper-free design prevents contamination in sensitive environments, with magnetic coupling eliminating mechanical wear. Features dual-piston structure for enhanced stability and 25% higher load capacity than single-piston models. The LB mounting bracket allows horizontal surface installation with 4x M5 mounting holes (spacing 25mm × 40mm).
- Cleanroom automation systems (semiconductor manufacturing)
- Precision material handling in medical device assembly
- High-cycle packaging machinery with space constraints
- Electroplating line transfer units requiring corrosion resistance
- Pharmaceutical blister packaging equipment
Installation protocol:
Maintain 0.5-1mm clearance between cylinder and guide rail surfaces.
Use only non-magnetic fasteners within 15mm proximity. Lubricate with
ISO VG32 turbine oil before initial operation. Requires 5μm filtered
dry air with dew point -20℃ below ambient temperature.
| Property | Property Value |
|---|---|
| sku | B52-RMS20X200LB |
