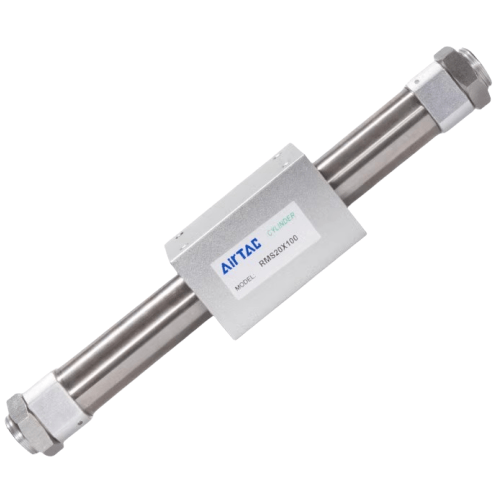

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS20X400LB
AirTAC B52-RMS20X400LB Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS20X400LB
- Type: Non-copper magnetic coupling rodless cylinder
- Bore size: 20mm
- Stroke: 400mm (adjustable mid-stroke available)
- Operating pressure: 0.05–0.9 MPa
- Max speed: 0.1–2.0 m/s
- Load capacity: 25N (horizontal), 20N (vertical)
- Coupling type: Non-contact magnetic transmission
- Material: Aluminum alloy body with stainless steel (SUS304) guide rail
- Seal material: HNBR with copper-free composition
- Port size: M5x0.8 (standard), G1/8 optional
- Cushioning: Elastic buffer + external shock absorber
- Repeat positioning accuracy: ±0.2mm
- Protection rating: IP54 (standard), IP67 available
- Lubrication: Pre-lubricated (maintenance-free for 2000km travel)
- Weight: 2.7kg (including rail)
- Dimensions: 440mm(L) × 42mm(W) × 38mm(H)
- Mounting: Horizontal/vertical/custom angles (dual-axis support recommended for vertical use)
- Accessories: Built-in T-slot for sensor mounting, optional linear encoder
This copper-free rodless cylinder features contamination-resistant magnetic coupling technology, ideal for environments prohibiting copper particles. The dual-sealed carriage with stainless steel reinforcement ensures smooth motion in corrosive conditions. Integrated wear compensation maintains precision through 10,000km+ service life.
- Semiconductor wafer handling robots
- Pharmaceutical cleanroom automation
- Food packaging machinery (FDA-compliant)
- Lithium battery production lines
- High-cycle CNC machine tool changers
Installation note: Maintain 0.05mm/m alignment tolerance during rail mounting. For vertical applications exceeding 300mm stroke, use auxiliary gas springs to prevent sudden drops during power loss.
| Property | Property Value |
|---|---|
| sku | B52-RMS20X400LB |
