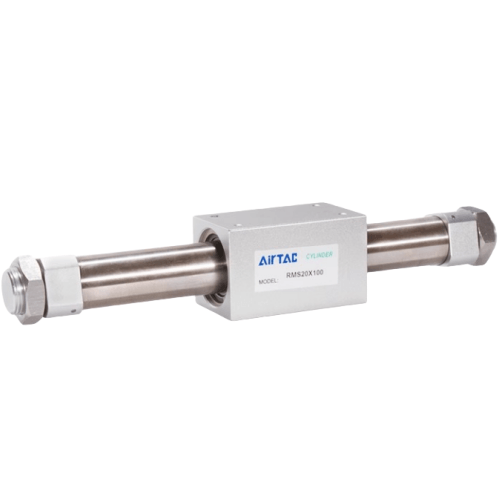

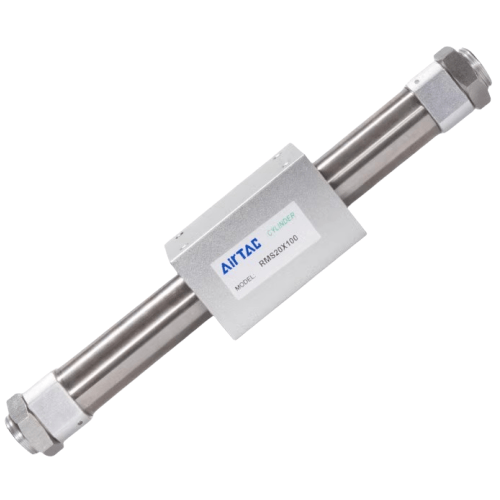

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS25X350LB
AirTAC B52-RMS25X350LB Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS25X350LB
- Type: Non-rotating rodless cylinder with magnetic coupling
- Bore size: Ø25mm
- Stroke: 350mm (customizable up to 2000mm)
- Operating pressure: 0.05-0.9 MPa
- Ambient temperature: -10℃ to 80℃
- Material: Aluminum alloy body, copper-free stainless steel guide
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Cushioning: Adjustable rubber buffers (both ends)
- Repeat positioning accuracy: ±0.2mm
- Max speed: 1000mm/s (with cushioning)
- Mounting: Multiple options (horizontal/vertical, front flange, base rail)
- Protection class: IP54 (standard), IP67 (optional with wiper upgrade)
- Weight: 2.8kg (including rail and carriage)
- Dimensions: 430mm(L) × 45mm(W) × 45mm(H) (stroke-dependent length)
Copper-free magnetic drive rodless cylinder designed for environments prohibiting copper contamination. Features low-friction magnetic coupling with position feedback compatibility. The twin-seal structure prevents external contamination while maintaining ≤0.05L/min air leakage. Optional Hall effect sensors can be integrated for position detection.
- Semiconductor wafer handling systems
- Pharmaceutical production lines (GMP environments)
- Laser cutting machine X-axis drives
- Food packaging equipment (copper-free requirement zones)
- Cleanroom automation (ISO Class 5-8)
Installation note:
Requires periodic lubrication (every 500km travel) with ISO VG32 hydraulic oil.
Avoid strong magnetic fields (>80mT) near the carriage. Maximum side load: 15N at mid-stroke.
| Property | Property Value |
|---|---|
| sku | B52-RMS25X350LB |
