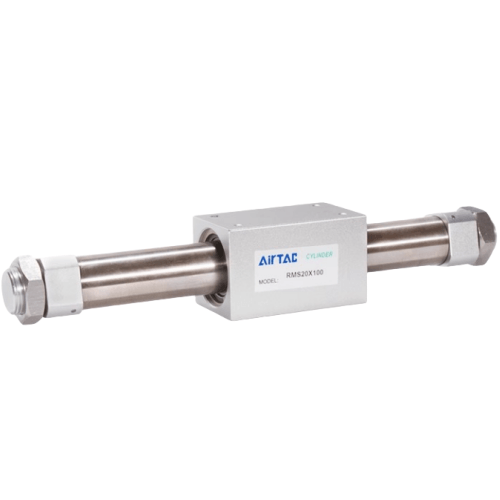

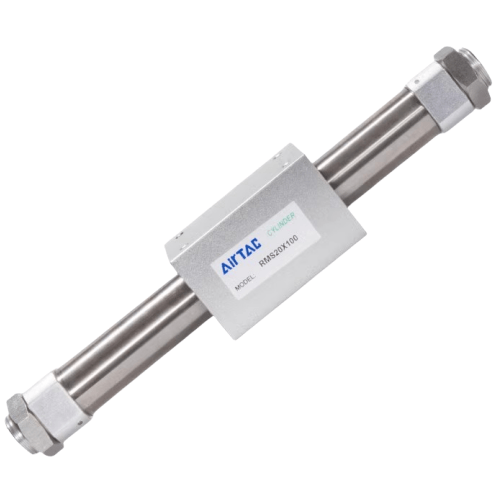

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS32X1000
AirTAC B52-RMS32X1000 Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS32X1000
- Type: Non-rotating rodless cylinder with magnetic coupling
- Bore size: Ø32mm
- Stroke: 1000mm (customizable up to 2000mm)
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 80℃
- Cylinder material: Aluminum alloy (copper-free design)
- Seal material: NBR + PU hybrid seals
- Magnetic coupling force: ≥120N
- Max speed: 0.1–1.5 m/s
- Cushioning: Adjustable pneumatic cushion
- Mounting: ISO 15552 standard mounts
- Port size: M5x0.8 (standard), G1/8 optional
- Weight: 4.8kg ±3% (with mounting brackets)
- Dimensions: 1048mm(L) × 75mm(W) × 75mm(H)
- Position detection: Built-in magnet for sensor mounting
- Protection rating: IP54 (standard), IP67 with optional wiper seals
Advanced copper-free design prevents contamination in sensitive environments, featuring contactless magnetic power transmission for zero leakage. Precision-ground stainless steel guide rails ensure smooth linear motion, while dual-channel sealing system maintains performance in dusty conditions. Requires ISO 8573-1:2010 Class 3 compressed air.
- Semiconductor wafer handling systems
- Pharmaceutical production lines (GMP environments)
- High-cycle packaging machinery (500+ cycles/min)
- Cleanroom material transfer systems
- Precision CNC machine tool changers
Installation guidelines:
Maintain 0.2mm/m alignment tolerance during mounting. Lubricate with ISO VG32 turbine oil
during initial installation. Magnetic sensors require 2mm gap adjustment for optimal detection.
Critical note:
Strictly prohibit copper-containing lubricants. Magnetic field strength decreases by 0.5%/℃
above 60℃ - consult engineering team for high-temp applications.
| Property | Property Value |
|---|---|
| sku | B52-RMS32X1000 |
