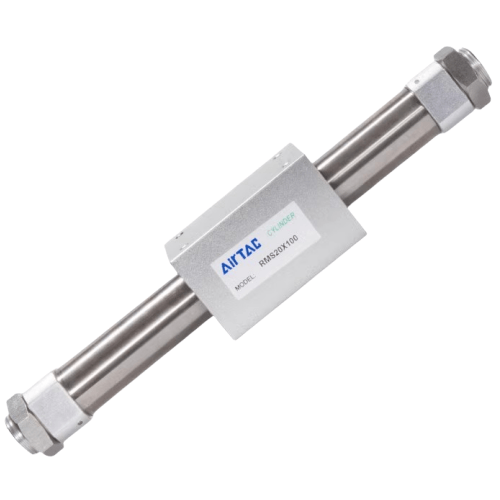

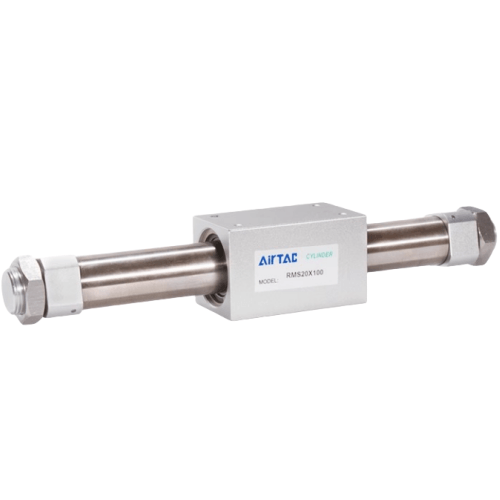

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS32X250
AirTAC B52-RMS32X250 Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS32X250
- Type: Non-rotating magnetic coupling rodless cylinder (copper-free design)
- Bore size: Ø32mm
- Stroke: 250mm
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushion type: Elastic buffer with adjustable damping
- Seal material: NBR + Special alloy magnetic components
- Mounting style: Standard ISO 15552 mounting grooves
- Port size: M5 × 0.8 (G1/8 equivalent flow)
- Repeat positioning accuracy: ±0.2mm
- Max speed: 500-1000mm/s (pressure-dependent)
- Protection rating: IP65 (dust & water jet resistant)
- Weight: 2.8kg (excluding mounting accessories)
- Dimensions: 420mm(L) × 72mm(W) × 72mm(H)
Advanced rodless actuator featuring copper-free construction for chemical-sensitive environments, with magnetic coupling delivering zero leakage and precise linear motion. The double-sealed carriage integrates wear-resistant guides, optimized for long-stroke applications requiring minimal maintenance. Includes built-in auto-alignment for reduced binding risk.
- Cleanroom material handling systems (semiconductor/LCD production)
- Pharmaceutical blister packaging machines
- Electroplating line conveyor drives
- Food processing automation with frequent washdowns
- High-cycle pick-and-place units (500+ cycles/minute)
Installation note:
Requires parallel alignment within 0.2mm/m. Use only non-ferromagnetic mounting brackets.
Lubricate with ISO VG32 hydraulic oil during initial setup. Magnetic field radius: 50mm clearance
from sensitive electronics recommended.
| Property | Property Value |
|---|---|
| sku | B52-RMS32X250 |
