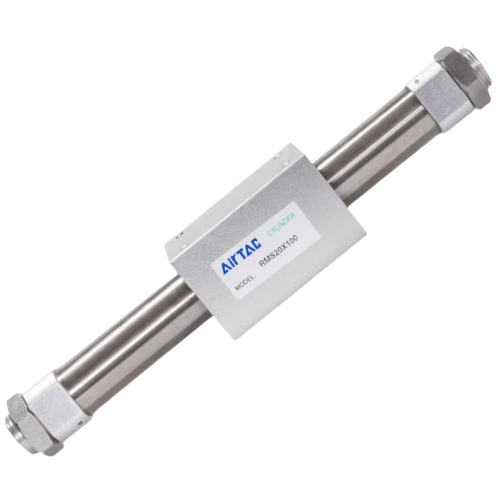

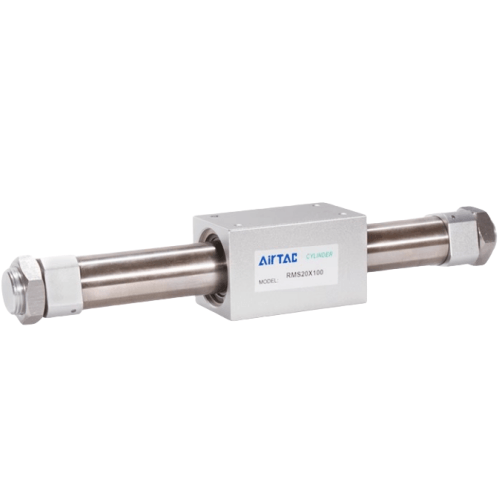

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS32X330
AirTAC B52-RMS32X330 Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS32X330
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32mm
- Stroke: 330mm (customizable 25-3000mm)
- Operating pressure: 0.1-0.8 MPa
- Max speed: 0.1-1.5 m/s (with cushioning)
- Material: Aluminum alloy barrel, stainless steel guide band
- Seal material: NBR/FKM optional
- Temperature range: -20℃ to 80℃
- Copper content: <0.1% (compliant with FDA 21 CFR)
- Weight: 3.7kg ±2%
- Dimensions: 420mm(L) × 42mm(W) × 42mm(H)
- Port size: M5x0.8 (1/8" NPT optional)
- Position detection: Built-in magnet for sensor mounting
- Protection rating: IP67 (dust/water resistant)
Copper-free magnetic rodless cylinder designed for cleanroom and corrosive environments. Features zero external leakage design with integrated scraper seal. The twin-guide rail structure ensures ≤±0.05mm repeat positioning accuracy. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.3 quality.
- Semiconductor wafer handling systems
- Pharmaceutical production lines
- Food-grade packaging machinery
- Lithium battery assembly automation
- Ultra-clean laboratory equipment
Installation note:
Mount on flat surface with ≤0.1mm/m straightness tolerance. Lubricate with ISO VG32
turbine oil (non-detergent) during initial setup. Maintain 50mm clearance for magnetic sensors.
| Property | Property Value |
|---|---|
| sku | B52-RMS32X330 |
