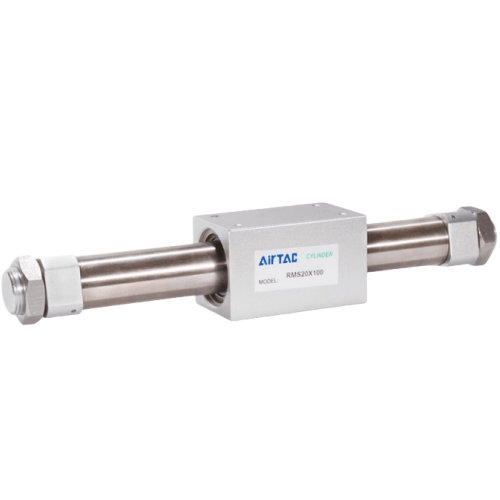

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS32X600
AirTAC B52-RMS32X600 Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMS32X600
- Type: Non-rod cylinder with copper-free magnetic coupling
- Bore size: 32mm
- Stroke length: 600mm
- Operating pressure: 0.1-0.8 MPa
- Operating temperature: -20℃ to 80℃
- Port size: M5x0.8 (standard) / NPT1/8 (optional)
- Cushion type: Adjustable rubber buffer
- Magnetic coupling force: ≥150N
- Material: Aluminum alloy body (copper-free design)
- Seal material: NBR + Polyurethane
- Protection rating: IP54 (standard) / IP67 (optional)
- Max speed: 500-800 mm/s (with cushioning)
- Mounting type: Dual rail linear guide
- Weight: 3.5kg ±5% (excluding accessories)
- Dimensions: 700mm(L) × 52mm(W) × 42mm(H)
Copper-free design prevents contamination in clean environments, featuring a magnetic coupling system that eliminates external leakage risks. The dual-guide rail structure ensures high lateral load capacity (up to 120N·m) and precise linear motion. Integrated sensors slots (M5 threaded) allow for position detection customization.
- Food processing lines (copper-free requirement areas)
- Pharmaceutical packaging machinery
- LCD panel handling systems
- Long-stroke automated material transfer
- Cleanroom automation equipment
Installation note:
Maintain parallel alignment within 0.2mm/m during mounting. Lubricate guide rails with ISO VG32 hydraulic oil every 500km of travel. Avoid using in strong magnetic fields (>80mT).
| Property | Property Value |
|---|---|
| sku | B52-RMS32X600 |
