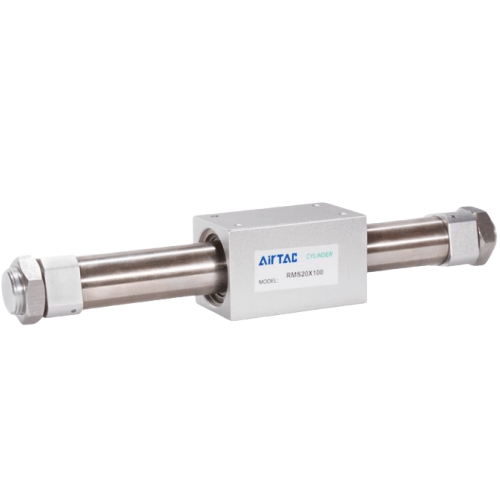

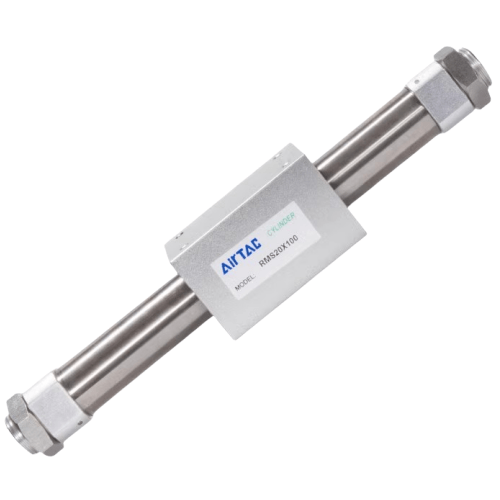

Airtac B52-RMS Non-Copper Magnetic Coupling Rodless Cylinder B52-RMS32X800LB
AirTAC B52-RMS32X800LB Copper-Free Magnetic Coupling Rodless Cylinder
- Model: B52-RMS32X800LB
- Type: Non-repulsive magnetic coupling rodless cylinder (copper-free design)
- Bore size: Ø32mm
- Stroke: 800mm
- Operating pressure: 0.1–0.8 MPa
- Cushioning: Adjustable pneumatic cushion
- Mounting: Side-mounting/Front flange/End clevis (optional)
- Material: Aluminum alloy cylinder tube, stainless steel piston rod
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Protection rating: IP65 (dust-tight & water jet resistant)
- Magnetic coupling type: Bi-polar permanent magnet system
- Weight: 5.8kg (with standard fittings)
- Dimensions: 800mm(L) × 96mm(W) × 76mm(H)
- Port size: M5x0.8 (standard), G1/8 optional
- Response time: ≤50ms (at 0.5MPa)
Copper-free magnetic rodless cylinder with precision ground aluminum profile and stainless steel band seal. Features zero leakage design with optimized magnetic circuit for stable thrust transmission (max 380N at 0.6MPa). Integrated T-slot mounting system allows multi-position sensor installation. Specially designed for copper-restricted environments.
- Semiconductor wafer handling systems
- Food-grade packaging machinery
- Pharmaceutical cleanroom automation
- Copper-sensitive chemical processing equipment
- High-speed pick-and-place operations (up to 2.5m/s)
Installation note:
Ensure rail parallelism within 0.2mm/m during mounting. Lubricate with ISO VG32 turbine oil
before initial use. Avoid axial torsion forces exceeding 5N·m. Recommended maintenance cycle:
3,000km travel or 12 months.
