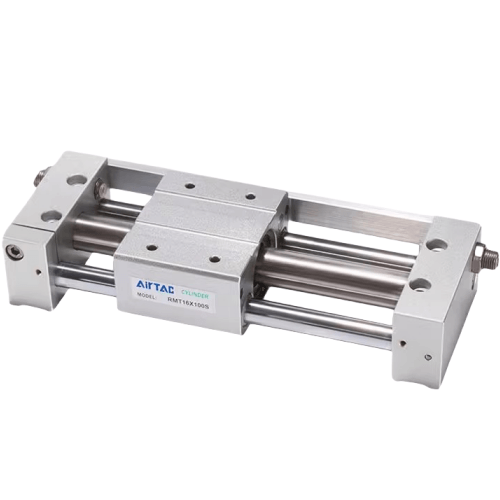

Airtac B52-RMT Copper-Free Magnetic Coupling Rodless Cylinder B52-RMT16X150SA
AirTAC B52-RMT16X150SA Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMT16X150SA
- Type: Non-rod cylinder with magnetic coupling
- Bore size: 16mm
- Stroke: 150mm
- Operating pressure: 0.1-0.8 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR + Polyurethane (copper-free design)
- Mounting type: Standard linear slide
- Port size: M5x0.8 (dual ports)
- Cushion type: Adjustable pneumatic cushion
- Repeat positioning accuracy: ±0.1mm
- Max. speed: 1000mm/s
- Protection rating: IP54
- Weight: 0.8kg ±5%
- Dimensions (L×W×H): 200mm × 40mm × 40mm (full extension)
Copper-free magnetic rodless cylinder featuring zero leakage design and corrosion-resistant construction. The dual-channel magnetic coupling ensures precise linear motion transfer without physical contact, making it ideal for cleanroom environments. Integrated T-slot mounting groove allows flexible installation configurations.
- Precision material handling in semiconductor manufacturing
- Pharmaceutical packaging lines
- Food-grade automation systems
- Optical lens positioning mechanisms
- Medical device assembly
Installation note:
Maintain parallel alignment within 0.05mm/m during mounting. Use only non-metallic scrapers for seal maintenance.
Lubricate with ISO VG32 hydraulic oil if operated below -10℃. Requires 5μm filtered dry air supply.
- Magnetic position sensing compatible
- Low friction coefficient: 0.003-0.008 (dynamic)
- Static load capacity: 18N (horizontal)
- Dynamic load capacity: 12N @ 0.5MPa
- Piston acceleration: ≤15 m/s²
