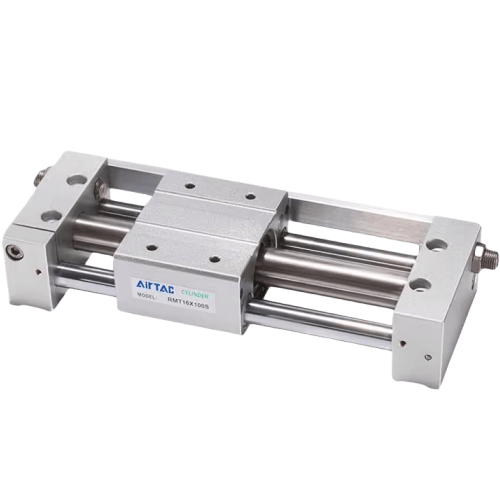

Airtac B52-RMT Copper-Free Magnetic Coupling Rodless Cylinder B52-RMT25X400SA
AirTAC B52-RMT25X400SA Copper-Free Magnetic Coupling Rodless Cylinder Specifications
- Model: B52-RMT25X400SA
- Type: Non-rotating magnetic coupling rodless cylinder (copper-free design)
- Bore size: Ø25mm
- Stroke: 400mm (customizable 50-4000mm)
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20℃ to 80℃
- Medium: Dry air (ISO8573-1:2010 Class 3.4.3)
- Max speed: 0.1-1.5 m/s
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting: Standard ISO 15552 mounting interfaces
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal material: HNBR/NBR (optional FKM for high temp)
- Protection rating: IP54 (IP67 with optional wiper kit)
- Weight: 2.5kg ±5% (excluding accessories)
- Dimensions: 585mm(L) × 44mm(W) × 44mm(H) (extended length)
- Magnetic field strength: ≥85mT at 1mm gap
- Repeat positioning accuracy: ±0.2mm
Copper-free magnetic drive system prevents corrosion in humid/chemical environments. Features zero-leakage design with isolated inner/outer chambers, making it ideal for cleanroom applications. Integrated T-slot allows direct load mounting. Optional Hall effect sensors (A52 series) for position feedback.
- Pharmaceutical packaging lines (corrosion-resistant)
- Semiconductor wafer handling robots
- Food processing conveyors (NSF-compliant versions)
- High-cycle automation (500+ million cycles rating)
- Vacuum environments (special seal kits available)
Installation note:
Maintain 0.5-1mm gap between magnetic slider and cylinder body.
Use anti-vibration mounts for high-speed applications (>1m/s).
Lubricate with ISO VG32 turbine oil for initial operation.
| Property | Property Value |
|---|---|
| sku | B52-RMT25X400SA |
