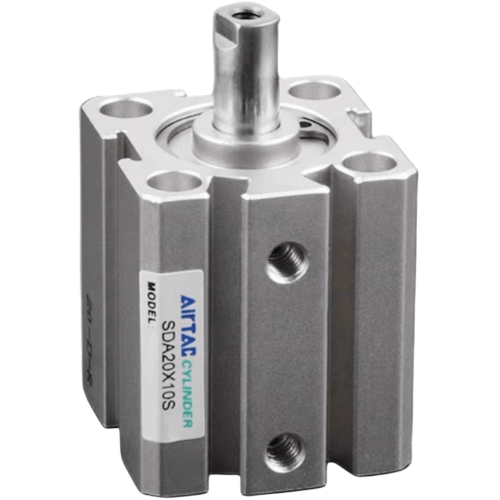

Airtac B52-SDA Non-Copper Ultra-Thin Cylinder B52-SDA16X5SB
$21.16
Regular price
$28.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B52-SDA16X5SB
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B52-SDA16X5SB Copper-Free Ultra-Thin Cylinder Specifications
- Model: B52-SDA16X5SB
- Type: Single-acting spring return (non-rotating)
- Bore size: 16mm
- Stroke: 5mm
- Operating pressure: 0.05–0.7 MPa
- Port size: M5x0.8
- Ambient temperature: -10℃ to 70℃
- Piston speed: 50–700 mm/s
- Material: Aluminum alloy body (copper-free design)
- Seal material: Heat-resistant NBR
- Mounting type: Standard center hole + lateral auxiliary holes
- Cushioning: Elastic buffer
- Weight: 85g ±2g
- Dimensions: 38mm(W) × 22mm(H) × 50.5mm(L)
- Protection rating: IP54
- Certification: ISO 6432 compliant
Ultra-compact cylinder featuring copper-free construction for chemical-sensitive environments. Precision-machined guide mechanism ensures smooth linear motion with ≤0.5mm lateral play. Optimized for high-frequency operations (up to 5 cycles/sec) with integrated wear compensation.
Typical Applications:
- Semiconductor wafer handling robots
- IVD medical analyzer mechanisms
- Precision optical lens positioning
- High-speed sorting gates in food packaging
- 3D printer filament feed systems
Installation note:
Requires 5Nm torque for mounting screws. Lubricate with copper-free
grease (ISO VG32 equivalent) every 500,000 cycles. Avoid lateral
force exceeding 15N to prevent guide rail deformation.
Special compliance:
Suitable for oxygen-rich environments (up to 40% concentration).
Not recommended for applications with silicone oil exposure.
| Property | Property Value |
|---|---|
| sku | B52-SDA16X5SB |
