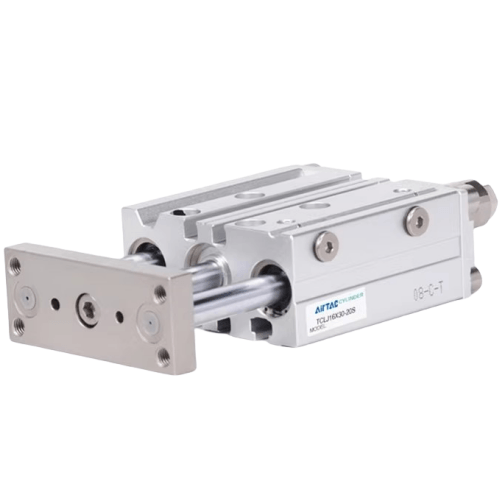

Airtac B52-TCLJ Copper-Free Triple-Axis Cylinder B52-TCLJ20X100-50S
AirTAC B52-TCLJ20X100-50S Copper-Free Triaxial Cylinder Specifications
- Full Model: B52-TCLJ20X100-50S
- Series: B52-TCLJ (Copper-free design)
- Bore Size: 20mm
- Stroke: 100mm (±0.5mm tolerance)
- Operating Pressure: 0.1-0.9 MPa
- Temperature Range: -20℃ to 80℃
- Cushion Type: Adjustable rubber buffer
- Port Size: G1/8 (ISO228 standard)
- Piston Speed: 50-800 mm/s
- Material: Aluminum alloy body with CR/SBR seals
- Mounting: ISO 15552 standard (50S indicates front flange with threaded mounting)
- Copper Content: 0% (Complies with FDA 21 CFR 175.300)
- Weight: 1.85 kg (without accessories)
- Dimensions: 214mm(L) × 53mm(W) × 53mm(H) (retracted state)
- Rod Thread: M10×1.25
- Repeat Accuracy: ±0.1mm
- Protection Rating: IP54 (standard wiper seal)
Heavy-duty triaxial cylinder featuring copper-free construction for chemical-sensitive environments. Precision-ground rod with hard chrome plating (≥20μm) ensures corrosion resistance. Integrated magnetic piston enables position feedback when paired with sensors. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Pharmaceutical production lines (no copper contamination)
- Chemical processing equipment
- Food packaging machinery (FDA compliant)
- Semiconductor wafer handling systems
- Marine environment automation
Installation protocol:
Maintain 0.05mm/m alignment tolerance during mounting. Apply MIL-G-8132 grease
to rod before initial operation. For vertical installations, use model suffix
"-V" with anti-drop mechanism.
Lubrication: Initial grease lasts 100 km - replenish with ISO VG32 turbine oil after maintenance
| Property | Property Value |
|---|---|
| sku | B52-TCLJ20X100-50S |
