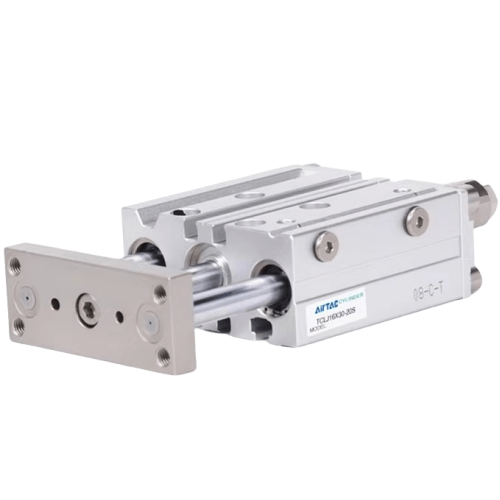

Airtac B52-TCLJ Copper-Free Triple-Axis Cylinder B52-TCLJ20X30-10S
AirTAC B52-TCLJ20X30-10S Copper-Restricted Triaxial Cylinder Specifications
- Full Model: B52-TCLJ20X30-10S
- Type: ISO standard copper-free triaxial cylinder (X/Y/Z-axis control)
- Bore diameter: 20mm
- Stroke: 30mm (±15mm adjustment)
- Rod diameter: 8mm hard chrome-plated steel
- Operating pressure: 0.1–0.9 MPa
- Ambient temperature: -10℃ to 80℃
- Cushioning: Adjustable air cushion (both ends)
- Port size: M5x0.8 dual ports
- Mounting: Standard ISO 15552 foot & flange
- Seal material: Copper-free HNBR compound
- Body material: Aluminum alloy (Cu <0.1%)
- Weight: 1.85kg (with all accessories)
- Dimensions: 150mm(L) × 76mm(W) × 76mm(H)
- Position detection: Pre-drilled slots for M5 sensors
- Protection class: IP54 (standard), IP67 optional
Ultra-precision triaxial actuator with strict copper-content control (＜100ppm), featuring synchronized three-axis motion through precision-machined guide rails. Integrated alignment pins ensure ≤0.02mm axis parallelism. Special phosphate coating prevents galvanic corrosion in chloride environments.
- Semiconductor wafer handling robots
- Lithium battery electrolyte filling systems
- Marine equipment positioning mechanisms
- High-purity chemical dosing stations
- Medical device assembly under cleanroom conditions
Installation protocol:
Requires copper-free grease (Molykote EM-30L recommended) during assembly.
Maximum side load: 15N (X/Y axes), 22N (Z-axis). Lubrication interval:
500km travel distance or 6 months in corrosive environments.
| Property | Property Value |
|---|---|
| sku | B52-TCLJ20X30-10S |
