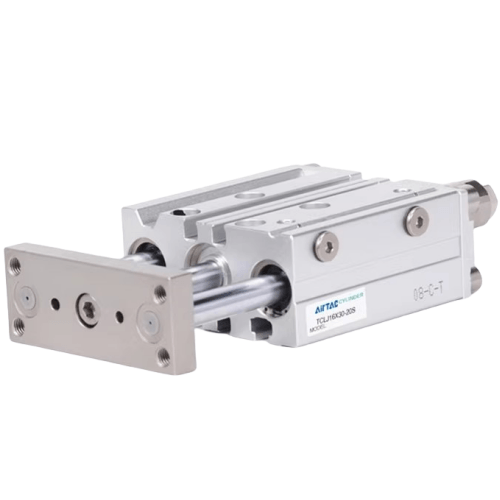

Airtac B52-TCLJ Copper-Free Triple-Axis Cylinder B52-TCLJ50X150-30S
AirTAC B52-TCLJ50X150-30S Copper-Free Triple Axis Cylinder Specifications
- Model: B52-TCLJ50X150-30S
- Type: ISO Standard Triple Axis Compact Cylinder (Copper-Free Design)
- Bore size: Ø50 mm
- Stroke: 150 mm (adjustable cushion)
- Operating pressure: 0.1–0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushion type: Adjustable pneumatic cushion
- Mounting style: Front flange with precision alignment grooves
- Port size: G1/8 (ISO standard)
- Piston rod thread: M16×1.5
- Material: Aluminum alloy body with hard anodizing (copper-free components)
- Seal material: NBR + Special copper-resistant additives
- Protection rating: IP67 (wipers included)
- Weight: ~3.2 kg (excluding accessories)
- Dimensions: 300mm(L) × 75mm(W) × 75mm(H) (at full extension)
Heavy-duty triple axis cylinder engineered for environments requiring strict copper contamination control. Features synchronized dual-rod guidance with anti-rotation mechanism and copper-free seals compliant with ISO 13775 standards. Precision ground piston rods (HRC 45-50 hardness) ensure ≤0.2mm lateral deflection under full load.
- Semiconductor wafer handling robots
- Copper-sensitive chemical processing equipment
- Food-grade packaging machinery
- Pharmaceutical production lines
- High-precision CNC tool changers
Installation note:
Requires 0.01μm filtered air supply for optimal seal life. Lubrication-free operation
recommended - use AirTAC CU-22 copper-free grease if necessary. Maximum side load
capacity: 180N at mid-stroke. Allow 50mm clearance for magnetic switch installation.
| Property | Property Value |
|---|---|
| sku | B52-TCLJ50X150-30S |
