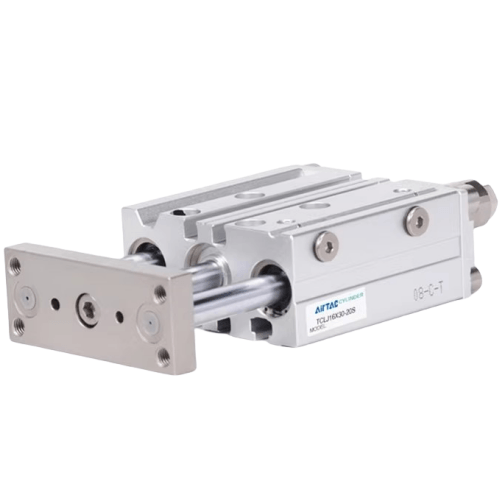

Airtac B52-TCLJ Copper-Free Triple-Axis Cylinder B52-TCLJ63X150-20S
AirTAC B52-TCLJ63X150-20S Non-Copper Triple Axis Cylinder Specifications
- Model: B52-TCLJ63X150-20S
- Type: Non-copper construction triple axis cylinder (copper-free design)
- Bore size: Ø63 mm
- Stroke: 150 mm
- Operating pressure: 0.1–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Cushion type: Adjustable rubber buffer
- Mounting style: Standard flange (ISO 15552 compatible)
- Port size: G1/4 (BSPP thread)
- Piston rod material: Hard chrome-plated stainless steel (SUS304)
- Seal material: High-grade NBR with copper-free additives
- Protection rating: IP67 (dust/water resistant)
- Weight: ~3.8 kg (without accessories)
- Dimensions: 300mm(L) × 100mm(W) × 120mm(H) (full extension)
- Rod end type: Female thread M12×1.25
- Max speed: 500 mm/s
- Lubrication: Pre-lubricated (non-detergent oil required for maintenance)
High-precision triple axis pneumatic cylinder specifically engineered for copper-sensitive environments. Features copper-free seals and lubricants to prevent contamination in semiconductor manufacturing and food processing applications. The TCLJ series incorporates dual guide rods for enhanced stability during multi-axis movements.
- Cleanroom automation systems (Class 1000 or higher)
- Wafer handling robots in semiconductor fabs
- Precision alignment stages for optical component assembly
- Food packaging machinery requiring NSF compliance
- Pharmaceutical tablet press automation
Installation note:
Requires copper-free pneumatic system components downstream. Use only compatible
ISO Class 2 lubricants. Maintain 20mm clearance around cylinder body for heat
dissipation during high-cycle operations (＞1,500 cycles/hour).
Critical parameters:
- Max side load: 35N (X/Y axes), 50N (Z axis)
- Alignment tolerance: ±0.05mm/m
- Breakaway pressure: ≥0.08 MPa
| Property | Property Value |
|---|---|
| sku | B52-TCLJ63X150-20S |
