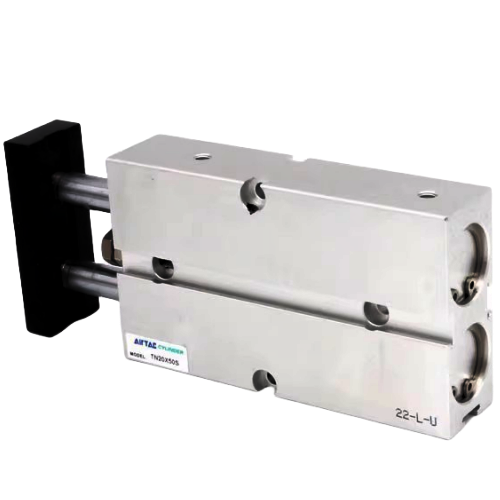

Airtac B52-TN Copper-Free Twin Rod Cylinder B52-TN16X20S
AirTAC B52-TN16X20S Copper-Free Double Rod Cylinder Specifications
- Model: B52-TN16X20S
- Type: ISO 6432 standard double rod copper-free cylinder
- Bore size: 16mm
- Stroke: 20mm (adjustable cushion)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (Nitrile) with copper-free formula
- Port size: M5x0.8 (standard) / G1/8 optional
- Cushion type: Adjustable air cushion at both ends
- Mounting style: Basic (no pre-mounting accessories)
- Weight: 0.45kg ±5%
- Dimensions:
- Total length: 128mm (stroke 20mm)
- Body width: 24mm
- Height with rods: 50mm (excluding mounting threads)
- Protection class: IP54 (standard wiper seal)
- Lubrication: Pre-lubricated (non-petroleum based grease)
Copper-free construction prevents contamination in sensitive environments, featuring dual stainless steel rods for enhanced lateral load capacity. Precision honed tube ensures smooth operation with ≤0.15mm re-peatability. Compatible with dry air and inert gases (N2). Requires 5μm filtration minimum.
- Semiconductor manufacturing equipment
- Pharmaceutical packaging lines
- Food-grade automation systems
- Laboratory analytical instruments
- Lithium battery production machinery
Installation note:
Avoid side load exceeding 3N·m. For vertical mounting,
use rod-end supports. Lubricate with ISO VG32 or equivalent
copper-free oil if manual lubrication required.
