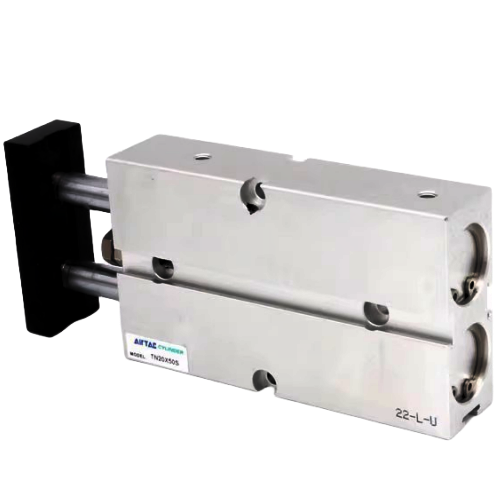

Airtac B52-TN Copper-Free Twin Rod Cylinder B52-TN16X90S
AirTAC B52-TN16X90S Copper-Free Double Rod Cylinder Specifications
- Model: B52-TN16X90S
- Type: ISO 6432 compliant double rod cylinder
- Bore size: 16mm
- Stroke: 90mm (±0.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Piston speed: 50–800 mm/s (cushioned)
- Ambient temperature: -20℃ to 80℃
- Material: Aluminum alloy body (copper-free design), NBR seals
- Rod material: Hard chrome-plated carbon steel
- Cushion type: Adjustable rubber buffer
- Mounting: Basic front flange (NF) standard
- Port size: M5x0.8 (dual ports on both ends)
- Weight: 0.68 kg (dry, without accessories)
- Dimensions: 178mm(L) × 34mm(W) × 34mm(H) (retracted position)
- Stroke tolerance: +1.5mm
- Protection rating: IP54 (standard), IP67 optional
Precision double rod cylinder featuring copper-free construction for chemical compatibility, with symmetrical force output and enhanced lateral load capacity. The dual piston rod design eliminates rotational movement during operation, making it ideal for alignment-critical applications. Includes wear-resistant guide bushings and multi-lip rod seals for maintenance-free operation.
- Pharmaceutical production line grippers
- Electroplating equipment actuators
- Semiconductor wafer handling systems
- Chemical processing valve operators
- Precision optical component positioning
Installation note:
Maintain 0.5mm minimum clearance between rods and external guides.
Use only copper-free lubricants (PAG or PFPE-based) in chemical environments.
Maximum side load: 15N at rod end.
