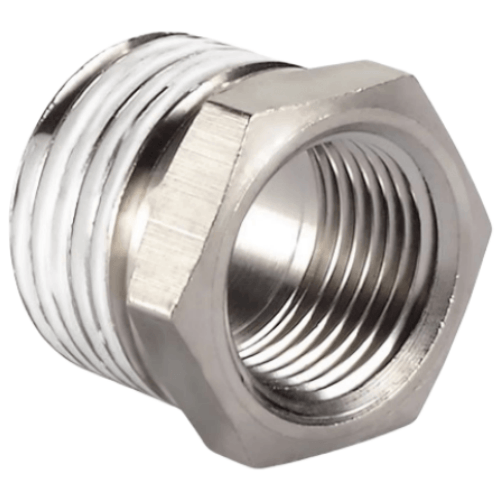

Airtac BD Female-Male Straight Connector BD0102-S
$6.01
Regular price
$13.51
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BD0102-S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC BD0102-S Male-Female Threaded Straight Connector Specifications
- Model: BD0102-S
- Series: BD (Threaded Straight Connector)
- Material: Brass with nickel plating
- Thread standards: PT (BSPT) & NPT compatible
- Thread sizes: PT1/8 (external) × PT1/8 (internal)
- Alternative sizes available: PT1/4, PT3/8 (specify suffix code)
- Max working pressure: 1.5 MPa (217 psi)
- Min burst pressure: 6 MPa (870 psi)
- Temperature range: -5℃ to 80℃
- Seal material: NBR (standard), FKM available on request
- Surface treatment: Electrolytic polishing
- Weight: 12.5g ±0.3g
- Dimensions: 18mm (L) × 14mm (W) × 14mm (H)
- Torque resistance: ≤25 N·m
- Vibration resistance: 10-2000 Hz, 1.5mm amplitude
Precision-machined bidirectional adapter for hybrid thread system conversions in pneumatic circuits. Features anti-vibration grooves and 360° rotatable installation capability. The tapered thread design ensures leak-free connections under dynamic pressure conditions.
Typical Applications:
- Transition fittings between BSPP/BSPT and NPT equipment
- Modular pneumatic system integration
- Robotic arm end effector air supply lines
- Compressed air instrumentation manifolds
- Vacuum generator circuit junctions
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Tighten until 1.5-2 threads remain visible. Avoid over-torquing to prevent
thread deformation. Compatible with pneumatic oils and most hydraulic fluids.
| Property | Property Value |
|---|---|
| sku | BD0102-S |
