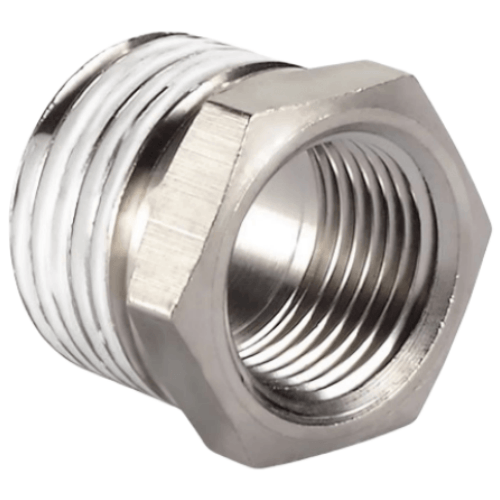

Airtac BD Female-Male Straight Connector BD0103
$3.68
Regular price
$11.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BD0103
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC BD0103 Male-Female Threaded Straight Connector Specifications
- Model: BD0103
- Thread type: BSPP (Parallel) / BSPT (Tapered) optional
- Male thread size: 1/8" (G1/8)
- Female thread size: 1/8" (R1/8)
- Material: Brass with nickel plating
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Surface hardness: ≥HV200
- Weight: 8.2±0.5g
- Dimensions: 18mm(Length) × 12mm(Width) × 12mm(Height)
- Torque resistance: ≤15 N·m
- Compliance: RoHS compliant
Precision-machined connector with dual sealing structure (thread+end face) for leak-free transitions between male-female pneumatic lines. Nickel plating provides corrosion resistance in humid environments. Features 360° rotatable female port for flexible installation alignment.
Typical Applications:
- Pneumatic tool air supply interfaces
- Compressed air distribution manifolds
- Industrial robot end-effector plumbing
- CNC machine lubrication line connections
- Hydraulic test bench fittings
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads. Avoid overtightening beyond 12 N·m torque to prevent port deformation. Compatible with Ø4mm-Ø6mm tubing when used with matching ferrules.
| Property | Property Value |
|---|---|
| sku | BD0103 |
