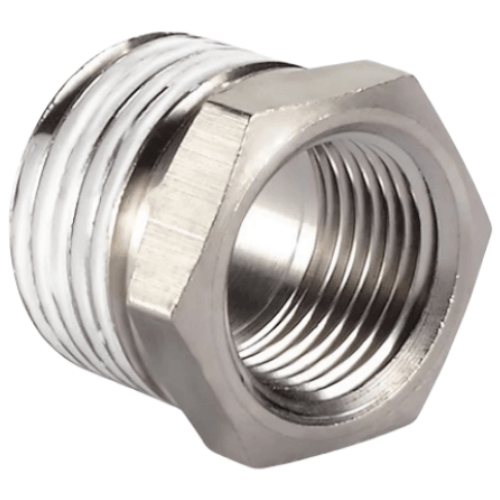

Airtac BD Female-Male Straight Connector BD0103-S
AirTAC BD0103-S Male-Female Straight Threaded Connector Specifications
- Model: BD0103-S
- Thread type: Male G1/8 (BSPP) × Female G1/8 (BSPP)
- Alternative thread options: NPT1/8 available on request
- Material: Lead-free brass CW617N
- Surface treatment: Electroless nickel plating (5-8μm)
- Pressure rating: 0.05-1.5 MPa
- Temperature range: -20℃ to 120℃ (dry air)
- Seal material: NBR (standard)/FKM (optional)
- Torque resistance: ≤29.4 N·m
- Weight: 12.5±0.3g
- Dimensions: 18mm(L) × 12.5mm(Dia.) × 12.5mm(Hex)
- Hex size: 12mm wrench compatible
- Flow coefficient (Cv): 0.35
- Compliance: RoHS 2.0 compliant
Bi-directional connector with precision-machined threads and corrosion-resistant coating, designed for leak-free transitions between male/female pneumatic lines. Features 360° rotatable female end for flexible installation alignment. Compatible with air, inert gases, and vacuum systems.
- Pneumatic valve manifold interconnections
- Air compressor hose conversion kits
- Robotic end effector plumbing systems
- Medical gas line adapters
- Packaging machine air circuit extensions
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Avoid over-tightening - final quarter turn should require 0.8-1.2 kgf·m torque.
Use backup wrench on hex body during assembly.
