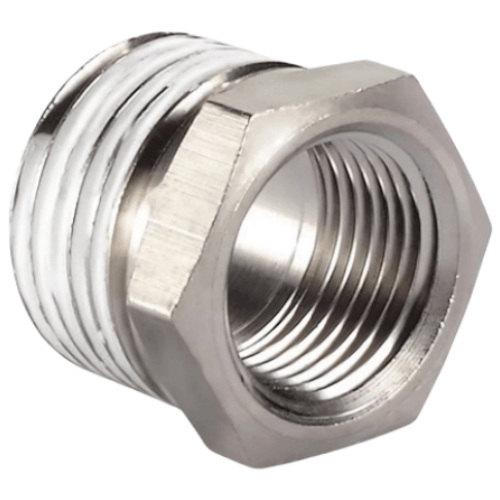

Airtac BD Female-Male Straight Connector BD0203
$3.43
Regular price
$10.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BD0203
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC BD0203 Male-Female Threaded Straight Connector Specifications
- Model: BD0203
- Thread type: Male-Female (BSPP/BSPT/NPT optional)
- Thread size: 1/8" (G1/8, R1/8, or NPT1/8)
- Material: Brass CW617N (Nickel-plated standard)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 120℃
- Seal material: NBR (Nitrile) rubber
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Weight: 12.5±0.3g
- Dimensions: 20mm(L) × 12mm(W) × 12mm(H)
- Torque limit: 1.2-1.5 N·m
- Compliance: RoHS 2.0 compliant
A precision bidirectional flow connector featuring corrosion-resistant nickel plating and 360° rotatable male thread. Engineered with tapered seat design for leak-free connections in high-vibration environments. Compatible with air, water, and non-corrosive fluids.
Typical Applications:
- Pneumatic cylinder port extensions
- Modular piping systems in automation equipment
- Instrumentation panel plumbing
- Compressed air tool interfaces
- Hydraulic test bench connections
Installation guidance:
Apply 1.5-2 wraps of PTFE tape on male threads. Use opposing wrenches
on hex flats (8mm AF) to prevent torsion damage. Avoid overtightening
beyond 1.8 N·m to preserve sealing integrity.
