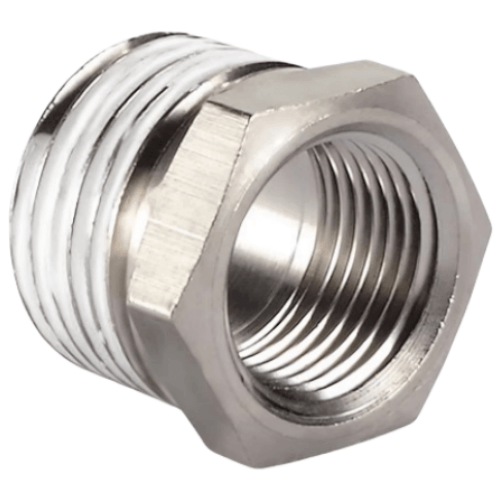

Airtac BD Female-Male Straight Connector BD0203-S
AirTAC BD0203-S Male-Female Threaded Straight Connector Specifications
- Model: BD0203-S
- Thread Type: G1/8 internal thread (female) × G1/8 external thread (male)
- Material: Brass (nickel-plated)
- Seal Material: NBR (Nitrile) O-ring
- Max Working Pressure: 1.5 MPa (217 psi)
- Burst Pressure: ≥4.5 MPa (653 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Thread Standard: ISO 228 (BSPP)
- Surface Roughness: Ra ≤1.6μm
- Weight: 12.5g ±0.3g
- Dimensions: 22mm (L) × 14.5mm (W) × 14.5mm (H)
- Torque Resistance: ≤25 N·m
- Flow Coefficient (Cv): 0.12
- Corrosion Resistance: 96hrs neutral salt spray test passed
A bidirectional flow connector with precision-machined BSPP threads, featuring anti-vibration teeth design for secure locking. The nickel plating provides enhanced corrosion resistance against hydraulic fluids and mild chemicals. Includes pre-installed leak-proof O-ring for immediate installation.
- Pneumatic circuit branching in automation equipment
- Sensor/valve port extension in robotic systems
- Compressed air line connections for CNC machines
- Vacuum system plumbing in packaging machinery
- Coolant line fittings in semiconductor manufacturing
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
Use two wrenches during assembly - one to hold the base fitting and
another to tighten the connector (max 15 N·m torque). Avoid thread
sealants containing silicone in oxygen systems.
