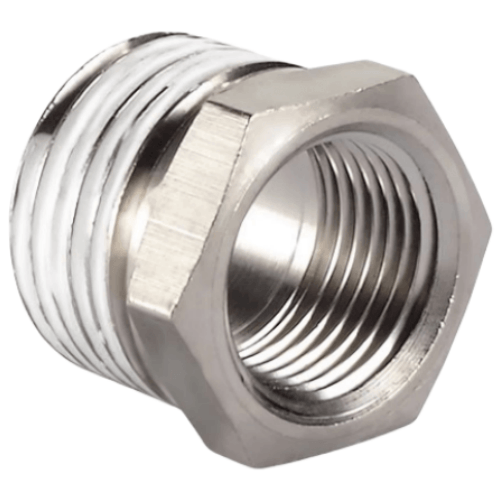

Airtac BD Female-Male Straight Connector BD0204-S
AirTAC BD0204-S Male-Female Straight Thread Connector Specifications
- Model: BD0204-S
- Thread type: BSPP (Parallel) / NPT optional
- Male thread size: 1/8" (PT1/8)
- Female thread size: 1/8" (PT1/8)
- Material: Stainless Steel (SUS303)
- Surface treatment: Natural color anodization
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa (652 psi)
- Temperature range: -20℃ to 150℃
- Seal material: HNBR (Hydrogenated Nitrile)
- Torque resistance: ≤35 N·m
- Weight: 12.5g ±0.3g
- Dimensions: 25mm(L) × 12mm(OD) × 12mm(ID)
- Flow coefficient (Cv): 0.22
- Vibration resistance: 10-2000Hz (IEC 60068-2-6)
A bidirectional flow connector with dual sealing rings (front face & radial O-ring) for leak-free transitions between male-female threaded components. Features anti-vibration grooves and chemical-resistant seals, compatible with air, water, and mild hydraulic fluids. Meets ISO 1179-2 standard for metric connections.
- Pneumatic cylinder port conversions
- Compressed air line extensions
- Coolant system adapters in CNC machines
- Vacuum pump connection interfaces
- Instrumentation tubing in semiconductor fabs
Installation note:
Apply 2-3 drops of compatible thread sealant (e.g., LOCTITE 577)
on male threads before assembly. Tighten with 22-25 N·m torque
using backup wrench to prevent component rotation.
