Airtac BD Female-Male Straight Connector BD0304-S

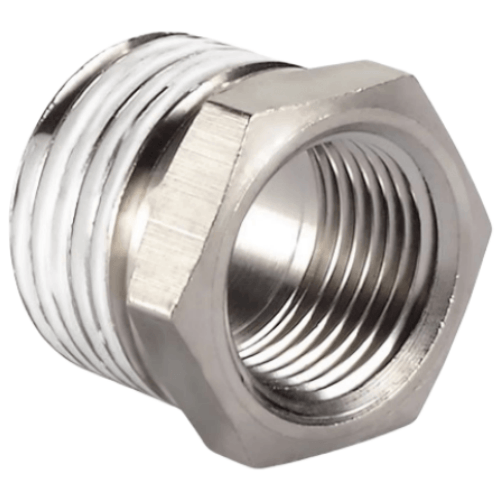

AirTAC BD0304-S Male-Female Threaded Straight Connector Specifications
- Model: BD0304-S
- Thread Type: BSPP (Parallel) / BSPT (Tapered) Optional
- Male Thread: 1/8" (PT1/8, G1/8)
- Female Thread: 1/4" (PT1/4, G1/4)
- Material: Brass (Nickel-plated surface)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 80℃
- Seal Material: NBR (Standard) / FKM (Fluorine Rubber Optional)
- Weight: 18.5g ±0.5g
- Dimensions: 30mm(Length) × 12mm(Hex Width) × 18mm(Threaded Section Height)
- Surface Roughness: Ra ≤3.2μm
- Pressure Test: 2.25 MPa (326 psi) for 3 mins (No leakage)
- Compliance: RoHS 2.0, REACH SVHC
A bidirectional pneumatic connector featuring corrosion-resistant nickel plating and precision-machined threads. The stepped design with dual sealing grooves ensures leak-free connections between different thread standards. Hexagonal body allows 12mm wrench operation with 1.2N·m recommended torque.
- Transition adapter between ISO 228 (G) and ISO 7 (R) thread systems
- Pneumatic tool air inlet connections
- Compressed air distribution manifolds
- Vacuum system plumbing in semiconductor equipment
- Hydraulic test bench instrumentation
Installation note:
Apply thread sealant (liquid type) on male threads only. Avoid over-tightening -
stop rotation when 1.5-2 threads remain visible. Perform pressure test
after 30-minute stabilization period.
