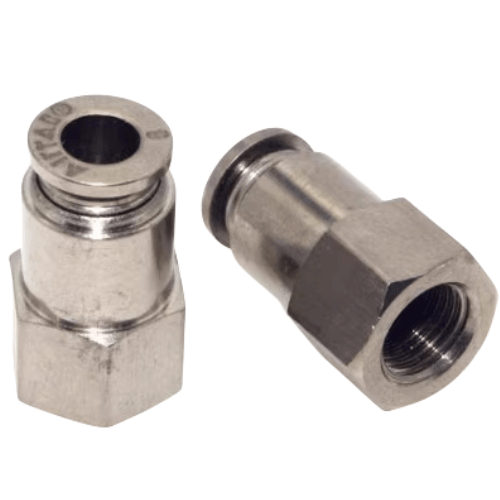

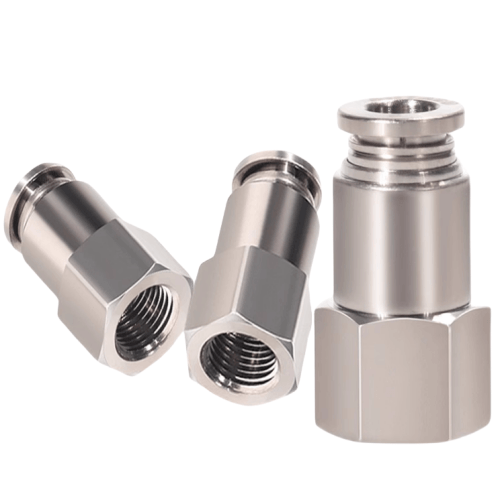

Airtac BPCF Female Thread Straight Through Fitting BPCF6M5
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF6M5 Female Thread Metal Straight Connector Specifications
- Model: BPCF6M5
- Type: Metal straight connector with female threads (dual-ended)
- Thread specification: M5×0.8 (ISO 1179-2 standard)
- Material: Brass with nickel plating (anti-corrosion coating)
- Seal material: NBR (Nitrile rubber) O-ring
- Operating pressure: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Proof pressure: 3.0 MPa (435 PSI)
- Tube OD compatibility: 6mm (ϕ6 pneumatic tubing)
- Surface roughness: Ra ≤1.6μm (internal flow path)
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 8mm(Diameter) × 8mm(W)
- Thread engagement depth: 5mm per side
- Certification: RoHS compliant
A precision-machined brass connector featuring leak-resistant design with dual NBR seals. The hexagonal body allows tool tightening (8mm wrench size), while nickel plating provides corrosion resistance in humid environments. Internal flow path optimized for minimal pressure drop (ΔP < 0.01MPa at 1MPa input).
- Pneumatic cylinder port connections
- Modular assembly in automation equipment
- Medical device gas line junctions
- Robotic arm pneumatic circuit branching
- Compressed air distribution in packaging machinery
Installation protocol:
Apply 1.2-1.5 N·m tightening torque using calibrated torque wrench.
Always insert tubing fully until it contacts internal stop before tightening.
Perform pressure test at 1.2× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | BPCF6M5 |
| Port Size | <6mm> |
| Connection Thread | M5×0.8 |
