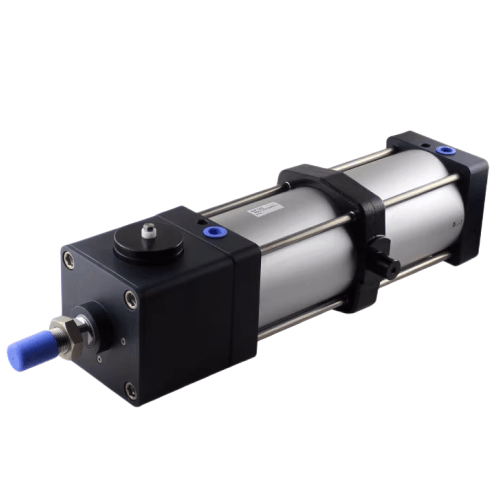

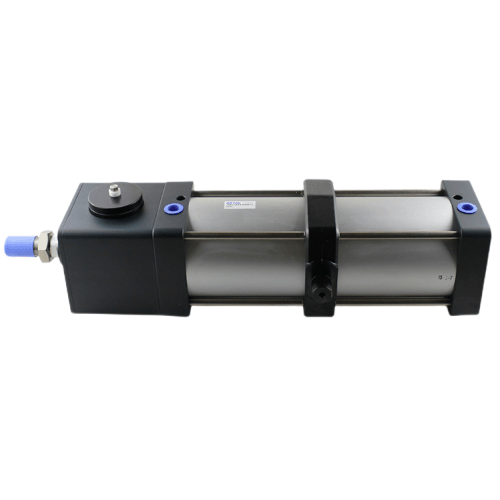

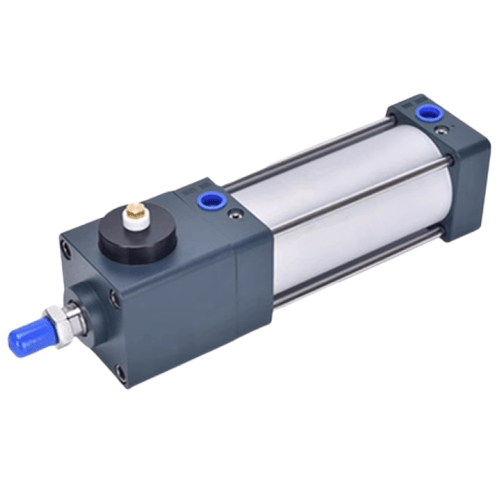

Airtac BSCD Clamp Cylinder BSCD80X250
$345.66
Regular price
$353.16
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BSCD80X250
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、BSCD series is a derivative product line combining standard cylinder with integrated clamping device;
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.3-0.6 MPa holding pressure for optimal clamping force.
Avoid side-load exceeding 30% of maximum thrust capacity.
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD80X250 Clamp Cylinder Specifications
- Model: BSCD80X250
- Type: Double-acting compact clamp cylinder
- Bore size: 80mm
- Stroke: 250mm
- Operating pressure: 0.1–0.9 MPa
- Port size: G1/8 (ISO standard)
- Piston rod material: Chrome-plated steel (S45C)
- Cylinder tube: Anodized aluminum alloy
- Cushioning: Adjustable buffer (both ends)
- Seal material: NBR + PU hybrid seals
- Temperature range: -20℃ to 80℃
- Weight: 3.8kg ±2%
- Dimensions: 310mm(L) × 98mm(W) × 98mm(H)
- Mounting: Standard MF1 flange & foot mounting options
- Rod thread: M20×1.5 external thread
- Protection rating: IP40 (dust resistant)
High-rigidity clamp cylinder with precision-ground rod and anti-rotation mechanism. Features dual piston seals for leak-free operation and integrated mounting grooves for sensor installation. Optimized for vertical load applications requiring sustained holding force.
Typical Applications:
- Workpiece fixturing in CNC machining centers
- Pallet locking systems in automated assembly lines
- Mold clamping in injection molding machines
- Safety interlocks in heavy press equipment
- Position retention in material handling robots
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.3-0.6 MPa holding pressure for optimal clamping force.
Avoid side-load exceeding 30% of maximum thrust capacity.
| Property | Property Value |
|---|---|
| sku | BSCD80X250 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 80 mm |
| Stroke | <250MM> → <250mm> |
| Static Holding Force | 3600 N |
