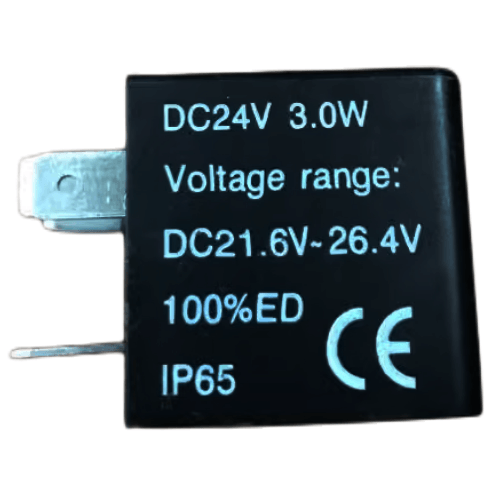

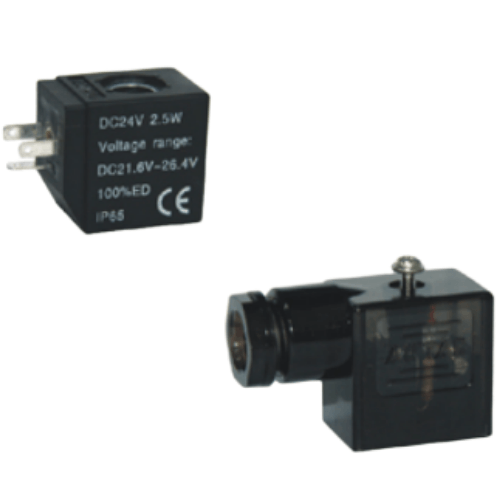

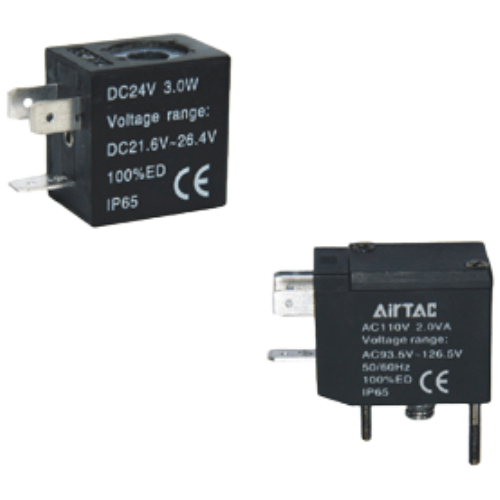

Airtac CDA Standard Solenoid Coil CDA080A
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA080A Standard Coil Technical Details
- Model: CDA080A
- Type: DIN-standard solenoid coil (Class F insulation)
- Voltage options: DC12V, DC24V, AC110V(50/60Hz), AC220V(50/60Hz)
- Power consumption: 4.5W (DC) / 5.5VA (AC)
- Protection rating: IP65 (conforms to EN60529)
- Temperature range: -30℃ to +150℃ (ambient)
- Insulation resistance: >100MΩ (500VDC megger test)
- Dielectric strength: 1500V AC for 1min
- Material: UL94 V-0 flame-resistant plastic housing, copper winding
- Weight: 215g ±5g
- Dimensions: 80mm(L) × 25mm(W) × 25mm(H)
- Mounting type: Direct coupling to ISO4400 standard valves
- Compatible valves: SY/SYQ/SYJ series 4V/5V pneumatic valves
High-performance industrial coil featuring dual-sealed epoxy encapsulation for moisture resistance. Optimized electromagnetic design ensures stable pull force with ±10% voltage tolerance. Includes built-in surge protection diode (DC models) and LED operation indicator. Meets CE and RoHS compliance standards.
- Automated production line valve clusters
- Plastic injection molding machines
- Textile machinery pneumatic systems
- Semiconductor manufacturing equipment
- Hydraulic system pilot controls
Installation guidelines:
Ensure valve core alignment before tightening mounting screws (recommended torque 0.6N·m).
Maintain minimum 3mm clearance from adjacent coils. Avoid continuous operation exceeding
60℃ coil surface temperature.
| Property | Property Value |
|---|---|
| sku | CDA080A |
| Standard Voltage | AC220V |
| Coil Inner Diameter | 8.0MM |
