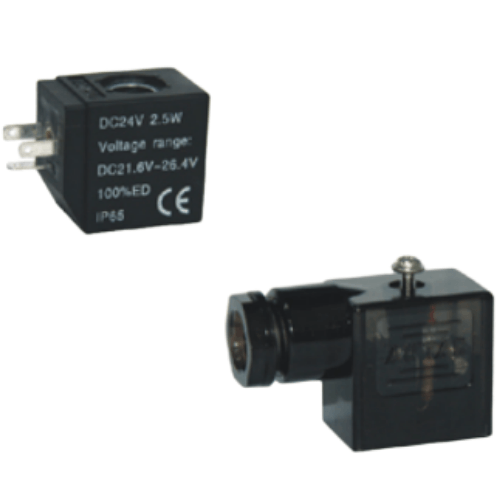

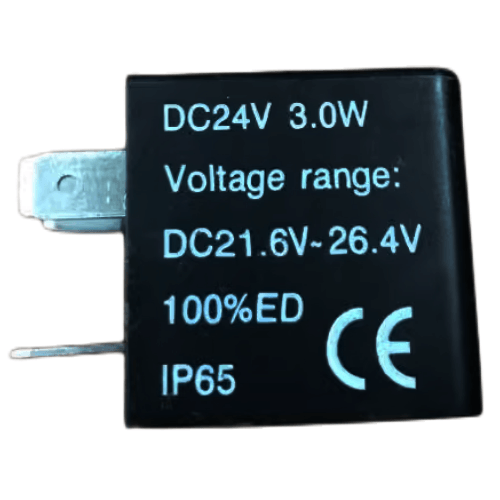

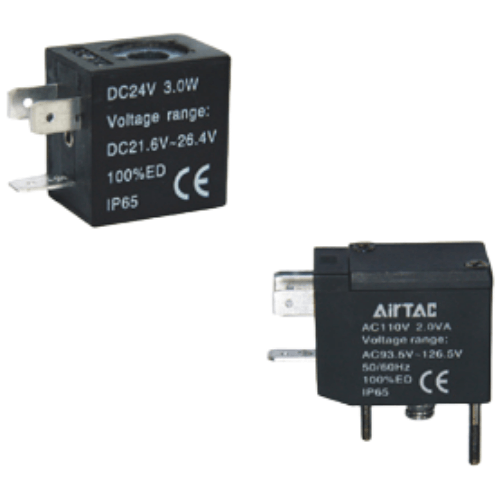

Airtac CDA Standard Solenoid Coil CDA080B
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA080B Standard Coil Technical Details
- Model: CDA080B (Standard Coil Series)
- Compatible valve types: 1/4"~1" port size solenoid valves
- Voltage options: DC12V/24V ±10%, AC24V/110V/220V ±10% 50/60Hz
- Power consumption: 5W (DC), 5.5VA (AC)
- Duty cycle: 100% ED (Continuous operation capable)
- Insulation class: Class B (130℃)
- Temperature range: -20℃ to +70℃ (No freezing)
- Protection rating: IP65 (Dust-tight & water jet resistant)
- Connection type: DIN43650 Form A (Standardized plug)
- Housing material: UL94 V-0 PBT (Flame-retardant)
- Seal material: NBR (Oil-resistant)
- Weight: 200g ±5% (Including terminals)
- Dimensions: 80mm(L) × 40mm(W) × 35mm(H)
Universal solenoid coil with enhanced thermal management, featuring dual-layer enameled copper winding and overcurrent protection. The anti-vibration design maintains stable performance in high-cycle applications (up to 1 million operations). Compatible with most AirTAC 2/2-way and 3/2-way valves.
- Pneumatic valve actuation in CNC machines
- Automatic production line control systems
- Beverage filling equipment solenoid control
- Textile machinery pneumatic circuits
- Medical sterilization device airflow control
Installation guidelines:
Ensure voltage matches coil rating (±10% tolerance). Avoid mounting near high-frequency
equipment (>10kHz). Maintain 15mm clearance from adjacent components for heat dissipation.
Use torque ≤0.5N·m when tightening mounting screws.
| Property | Property Value |
|---|---|
| sku | CDA080B |
| Standard Voltage | DC24V |
| Coil Inner Diameter | 8.0MM |
