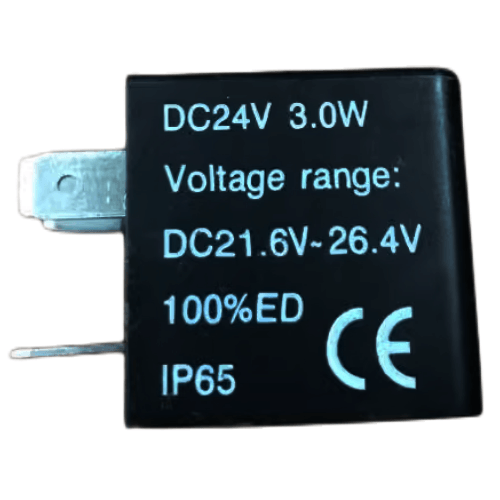

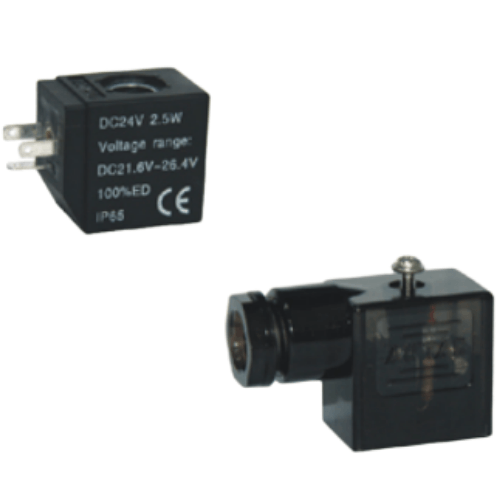

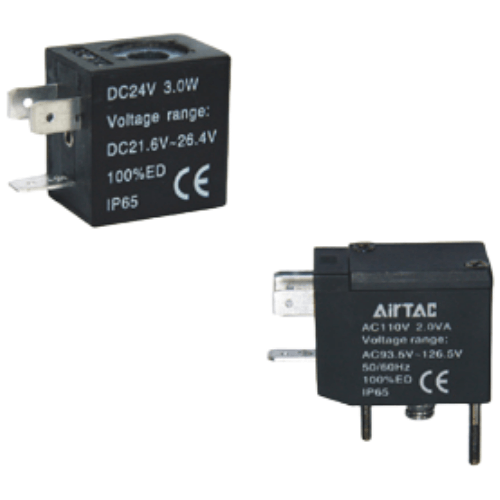

Airtac CDA Standard Solenoid Coil CDA080E
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA080E Standard Solenoid Coil Specifications
- Model: CDA080E
- Coil type: Class B insulation (130℃ thermal rating)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±15%), AC220V (±15%)
- Power consumption: 5W (DC), 5.5VA (AC)
- Duty cycle: Continuous (100% ED)
- Resistance: 28.8Ω (DC24V), 6.9Ω (DC12V), 2420Ω (AC220V)
- Temperature range: -20℃ to +70℃ (no icing)
- Protection rating: IP65 (conforms to IEC60529)
- Insulation class: Class F (155℃) optional
- Lead wire: 300mm PVC cable (standard), 500mm optional
- Coil housing material: UL94 V-0 PBT resin
- Seal material: NBR rubber gasket
- Weight: 205g ±5g
- Dimensions: 60mm(L) × 35mm(W) × 25mm(H)
High-efficiency solenoid coil with dual-chamber epoxy encapsulation technology, featuring moisture-proof construction and vibration resistance. The optimized magnetic circuit design ensures stable operation under voltage fluctuations (±15% AC/±10% DC). Compatible with ISO4400/DIN43650 valve interfaces.
- Pneumatic valve actuation in CNC machinery
- Automated assembly line control systems
- Textile equipment pneumatic controllers
- Semiconductor manufacturing actuators
- Food processing pneumatic circuits (non-contact design)
Installation guidelines:
Ensure coil voltage matches control system specifications.
Avoid installation in environments with strong electromagnetic interference.
Maintain minimum 2mm clearance from adjacent components for heat dissipation.
Do not disassemble epoxy-sealed housing - voids warranty.
| Property | Property Value |
|---|---|
| sku | CDA080E |
| Standard Voltage | AC24V |
| Coil Inner Diameter | 8.0MM |
