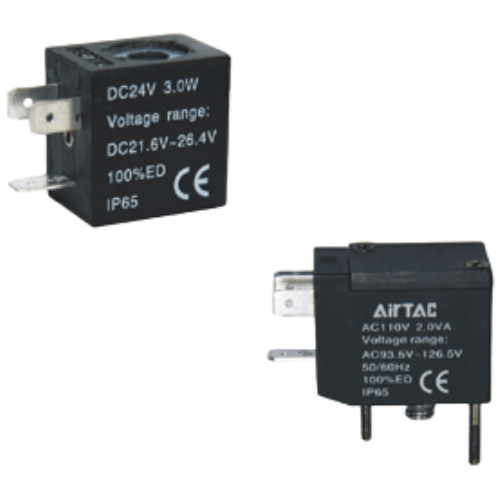

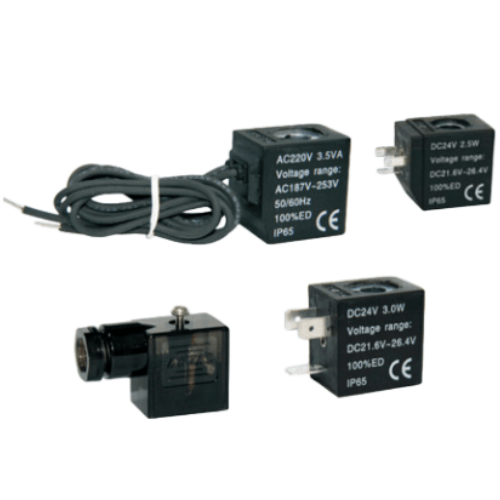

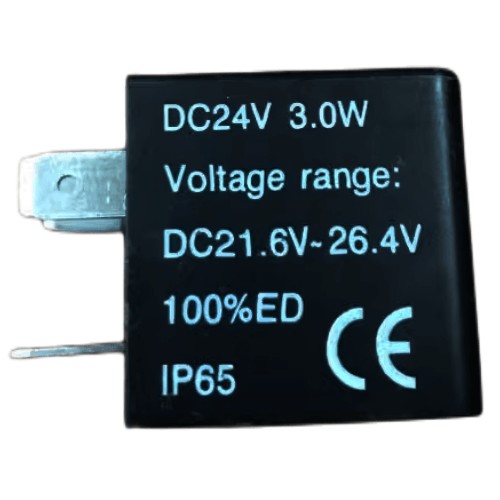

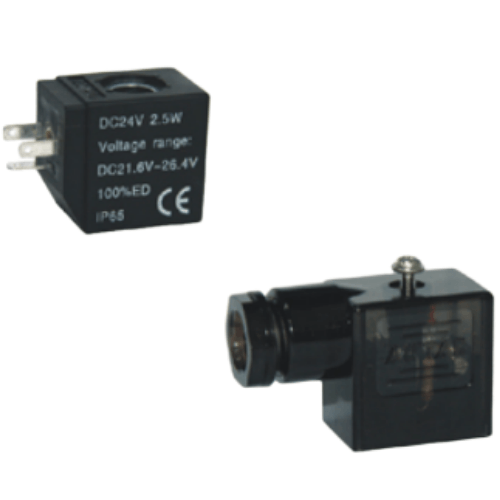

Airtac CDA Standard Solenoid Coil CDA080F
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA080F Standard Solenoid Coil Specifications
- Model: CDA080F
- Type: Standard DIN43650 Form A coil (Class F insulation)
- Compatible valve series: ADK 080 series solenoid valves
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: 5W (DC), 6VA (AC)
- Protection rating: IP65 (dust-tight & protected against water jets)
- Temperature range: -20℃ to 120℃ (ambient)
- Duty cycle: 100% continuous operation
- Inductance: 0.8H ±10% @ 1kHz (DC coils)
- Insulation resistance: ≥100MΩ @ 500VDC
- Dielectric strength: 1500V AC for 1 minute
- Coil housing material: Reinforced PBT with UL94 V-0 rating
- Lead wire: 2x 0.5m PVC insulated wires (standard), 22AWG
- Weight: 200g ±5% (including connectors)
- Dimensions: 48mm(L) × 36mm(W) × 34mm(H)
- Mounting: DIN rail compatible with snap-on design
- Certifications: CE, RoHS, REACH compliant
High-performance solenoid coil engineered for industrial automation systems, featuring overcurrent protection and vibration-resistant construction. The epoxy-encapsulated winding ensures moisture resistance and thermal stability, with a unique heat dissipation design allowing operation at 120℃ ambient temperature. Compatible with ISO 4400 standard valve interfaces.
- Plastic injection molding machine valve clusters
- Automated assembly line pneumatic controls
- Textile machinery air circuit switching
- Semiconductor manufacturing equipment
- Food processing pneumatic systems (oil-free models available)
Installation guidelines:
Maintain minimum 10mm clearance between adjacent coils. Use torque ≤0.5N·m when tightening mounting screws.
For AC coils, install surge suppression devices if switching frequency exceeds 5Hz. Avoid bending leads within 15mm of coil housing.
| Property | Property Value |
|---|---|
| sku | CDA080F |
| Standard Voltage | DC12V |
| Coil Inner Diameter | 8.0MM |
