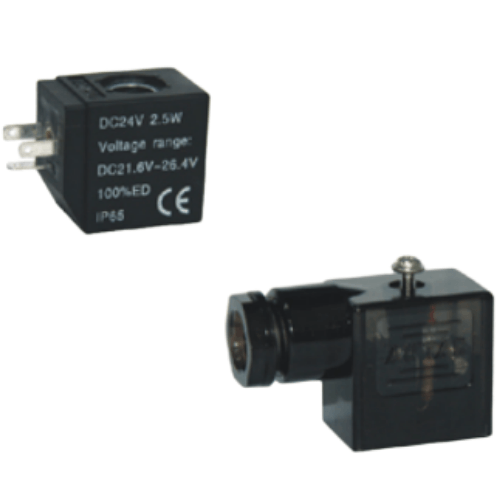

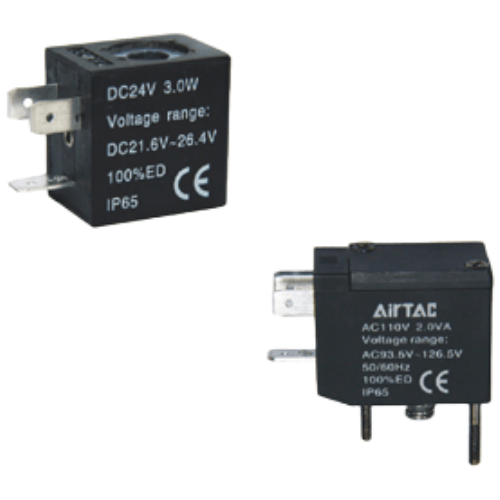

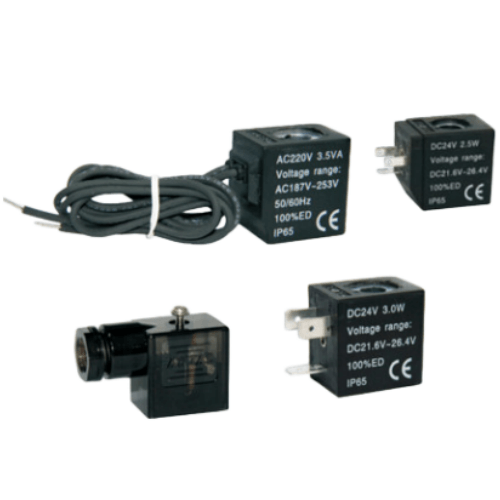

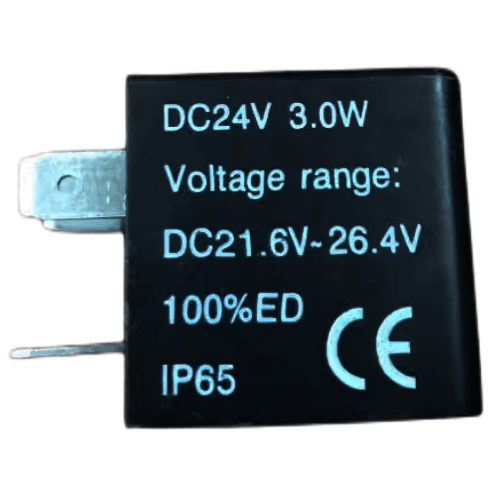

Airtac CDA Standard Solenoid Coil CDA092C
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA092C Standard Coil Technical Details
- Model: CDA092C
- Type: Direct-acting solenoid coil (Class F insulation)
- Compatible valve series: CDA2/CDC2/CDM2/CS1 series
- Voltage tolerance: ±10%
- Voltage options:
- DC: 12V, 24V
- AC: 110V (50/60Hz), 220V (50/60Hz)
- Power consumption:
- DC24V: 2.2W
- AC220V: 3.5VA
- Insulation resistance: ≥100MΩ (500VDC megger test)
- Dielectric strength: 1,500V AC for 1 minute
- Temperature range: -20℃ to +150℃ (coil surface ≤+120℃)
- Protection rating: IP65 (coil only)
- Lead wire: 300mm length, 22AWG PVC insulated
- Weight: 180g ±5%
- Dimensions: 39mm(W) × 34mm(H) × 48mm(D)
- Mounting: DIN EN 175301-803 compatible
High-performance solenoid coil with UL-certified materials, featuring overcurrent protection design and vibration-resistant construction. The epoxy resin encapsulation ensures moisture resistance in humid environments. Compatible with multiple AirTAC valve configurations, this coil maintains stable magnetic force output even during voltage fluctuations.
- Factory automation pneumatic circuits
- Textile machinery control systems
- Semiconductor manufacturing equipment
- Commercial vehicle pneumatic controls
- Beverage dispensing machines
Installation guidelines:
Ensure coil leads aren't stretched during installation. Maintain minimum 3mm clearance from adjacent components for heat dissipation. Use torque ≤0.5N·m when tightening mounting screws to avoid resin casing deformation.
Critical note:
Never energize the coil without valve body installation - this may cause overheating and insulation damage within 30 seconds. Always match coil voltage with power supply specifications.
| Property | Property Value |
|---|---|
| sku | CDA092C |
| Standard Voltage | AC 110V |
| Coil Inner Diameter | 9.0mm |
